Products specifications

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 3V
Minimum Breakdown Voltage 5V
Power Dissipation - Pd 150W
Applications General Purpose
Capacitance @ Frequency 26pF @ 1MHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)

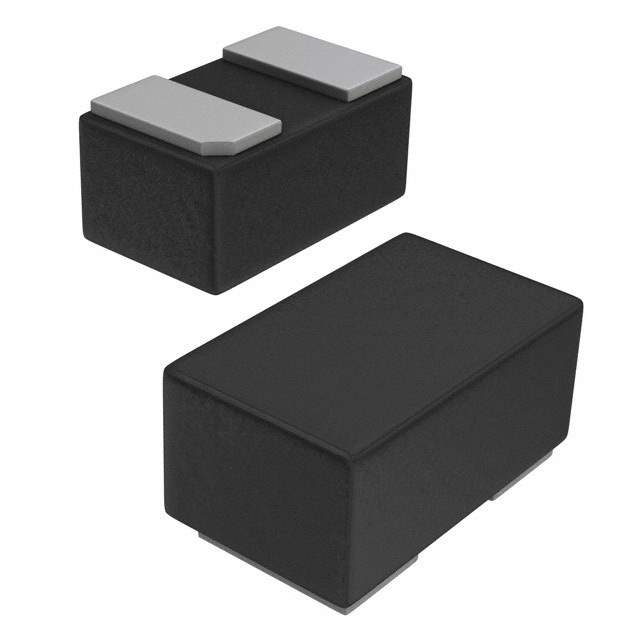

Case / Package SOD-882
Win Source Part Number 1037141-ESDALCL5-1BM2
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ESDALCL5-1BM2 CAD Model

Description

The ESDALCL5-1BM2 from STMicroelectronics is a state-of-the-art ESD protection device designed to safeguard high-speed data lines from electrostatic discharge (ESD) threats. This product is a bidirectional single line TVS (Transient Voltage Suppressor) diode, which is specifically engineered to protect sensitive electronic equipment by clamping harmful voltage spikes and transients induced by ESD events.

Key Features

  • Low Clamping Voltage: The device provides a very low clamping voltage to ensure the protection of the most sensitive circuits.
  • Low Capacitance: With a capacitance value as low as 5 pF, the ESDALCL5-1BM2 is ideal for protecting high-speed data lines without compromising signal integrity.
  • High ESD Protection: It can withstand ESD discharges up to 15 kV (air discharge) and 8 kV (contact discharge) as per IEC 61000-4-2 standard, offering robust protection for your electronic devices.
  • Small Package: The SOD-882 package is compact and suitable for high-density circuit board designs.
  • RoHS Compliant: The product is compliant with RoHS standards, minimizing the environmental impact and meeting regulatory requirements.

Applications

The ESDALCL5-1BM2 is versatile and can be used in a variety of applications where ESD protection is critical. It is particularly well-suited for:

  • USB 2.0 and 3.0 interfaces
  • HDMI and DisplayPort interfaces
  • Antenna lines
  • Smartphone and mobile device I/O interfaces
  • High-speed data lines in portable and consumer electronics

Why Choose ESDALCL5-1BM2?

Choosing the ESDALCL5-1BM2 for your electronic designs means opting for a product that offers a perfect blend of performance, size, and protection. Its low capacitance ensures high-speed signal integrity, while its robust ESD protection shields sensitive components from potentially damaging static discharges. The compact form factor of the SOD-882 package allows for flexible PCB layout, making it a go-to choice for designers looking to enhance the durability of their products without compromising on space or functionality.
