STMicroelectronics L7986 Power Converter

The L7986 from STMicroelectronics is a highly efficient, monolithic synchronous step-down regulator that offers a compact solution for powering a wide range of applications. Designed to convert a higher input voltage to a lower output voltage with a maximum output current of 3A, this device is ideal for systems that require reliable and efficient power conversion.

The L7986 operates over a wide input voltage range from 4.5V to 38V, making it versatile for use in various applications, from automotive to industrial systems. The output voltage can be adjusted from 0.6V to the input voltage minus 1V, allowing for a broad range of output voltages to meet the needs of different circuits and devices.

One of the key features of the L7986 is its high efficiency, which is achieved through its synchronous rectification and low RDS(on) MOSFETs. This characteristic ensures minimal heat generation and maximizes battery life in portable applications. Additionally, the switching frequency of the device is adjustable from 200kHz to 1.8MHz, which gives designers the flexibility to optimize the size of the external components and the performance of the power supply.

The L7986 also includes a variety of protection features to ensure the safety and reliability of the end application. These include overcurrent protection, thermal shutdown, and a programmable soft-start function that prevents inrush current spikes during startup. Moreover, the device supports both pulse skipping and fixed frequency modes, allowing for a trade-off between efficiency and output ripple based on the application's requirements.

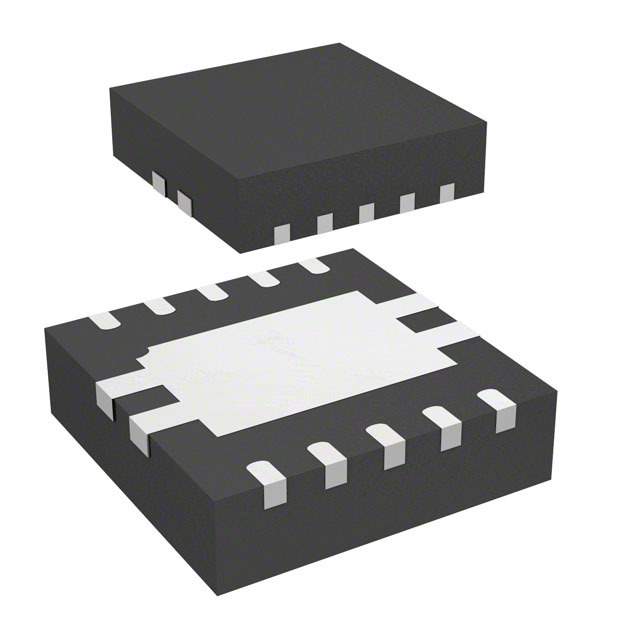

For ease of use, the L7986 is available in a space-saving VFQFPN 16L 3x3 mm package, making it suitable for compact designs without compromising on power capability. Whether you're designing power supplies for consumer electronics, telecommunications, or automotive applications, the L7986 provides a reliable, efficient, and flexible solution that meets the rigorous standards of STMicroelectronics' products.
