Products specifications

Categories Integrated Circuits (ICs)
Manufacturer STMicroelectronics
Packaging Reel - TR
Applications Automotive
Operating Supply Current 4μA
Operating Supply Voltage 5 V ~ 28 V
Operating Temperature Range -40°C ~ 150°C
Mounting SMD

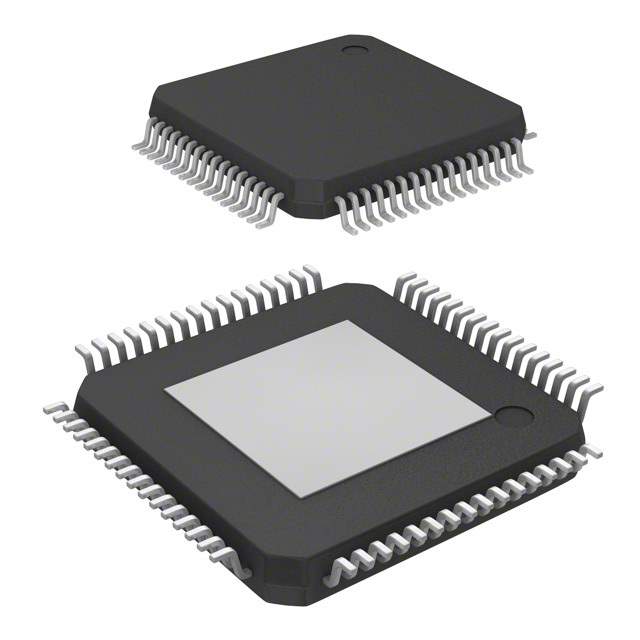

Package 64-TQFP Exposed Pad
Manufacturer Package 64-TQFP
Manufacturer Homepage www.st.com
Win Source Part Number 714788-L99DZ80EPTR
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Family Name L99DZ80EP
Introduction Date December 20, 2010
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian L99DZ80EPTR CAD Model

Description

STMicroelectronics L99DZ80EPTR - Advanced Motor Driver

The L99DZ80EPTR from STMicroelectronics is a cutting-edge motor driver specifically designed to cater to the demanding requirements of automotive applications. This robust and versatile component is a perfect solution for controlling DC motors and stepper motors with micro-stepping capabilities, making it an ideal choice for automotive mechatronic applications such as headlamp leveling, HVAC flaps, and many other positioning systems.

Key Features:

  • Integrated Design: The L99DZ80EPTR integrates multiple drivers into a single package, thus reducing the complexity and footprint of the circuit board design. This integration not only simplifies the overall design process but also enhances the reliability of the system.
  • High Voltage Capability: With an operating voltage range from 6V to 28V, the device is capable of handling the fluctuations commonly found in automotive power supplies, ensuring stable and consistent performance.
  • Micro-Stepping Support: The device provides micro-stepping control for stepper motors, enabling precise motor positioning and smoother motion control, which is essential for applications that demand high accuracy and quiet operation.
  • Protection Features: The L99DZ80EPTR comes with a suite of protection features, including overtemperature shutdown, undervoltage shutdown, and overcurrent protection, safeguarding the motor and the driver from various electrical hazards.
  • Diagnostic Functions: Advanced diagnostic functions are built-in to facilitate easy troubleshooting and maintenance, which is critical for ensuring the longevity and reliability of automotive systems.

Applications:

The versatility of the L99DZ80EPTR makes it suitable for a wide range of automotive applications. It is commonly used in:

  • Headlamp leveling systems
  • Climate control flap actuators
  • Active grille shutters
  • Valve control systems
  • Small electric pumps

With its advanced features and robust design, the L99DZ80EPTR from STMicroelectronics stands out as a superior motor driver solution for automotive engineers seeking to enhance the performance and reliability of their motor control systems.
