Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr STMicroelectronics
Series Automotive, AEC-Q100
Package Tape & Reel
Product Status Active
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) 2.5V
Voltage - Output (Max) -
Voltage Dropout (Max) 0.4V @ 1A
Current - Output 1A
Current - Quiescent (Iq) 50 µA
Current - Supply (Max) 300 µA
PSRR 65dB ~ 62dB (1kHz ~ 10kHz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Surface Mount, Wettable Flank

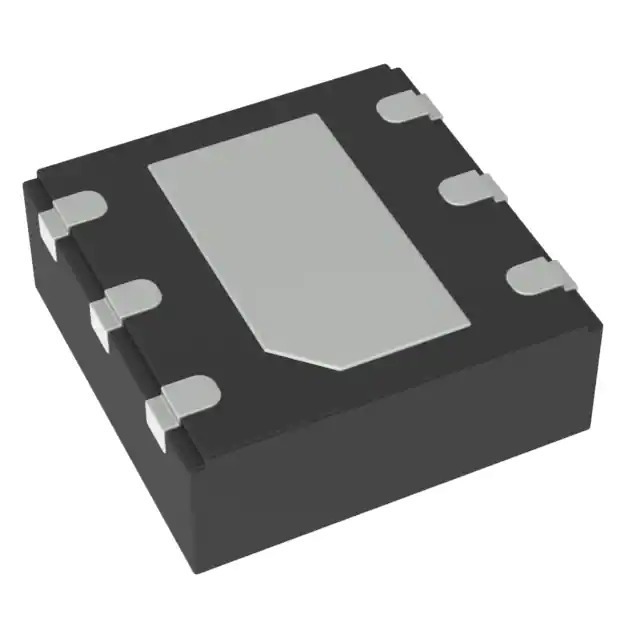

Package / Case 6-VDFN Exposed Pad
Supplier Device Package 6-DFN (3x3)
Base Product Number LD49100
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1378791-LD49100PU25RY
Ultra Librarian 3D Model Ultra Librarian LD49100PU25RY CAD Model

Description

The LD49100PU25RY is a high-performance, low-dropout voltage regulator from STMicroelectronics, designed to provide a stable and reliable power supply in a wide range of applications. This voltage regulator is particularly suitable for sensitive electronic devices that require a consistent voltage level for optimal performance.

Key Features

  • Output Voltage: The LD49100 provides a fixed output voltage of 2.5V, which is ideal for powering low-voltage digital circuits.
  • High Accuracy: It offers excellent voltage accuracy, maintaining a stable output even under varying input voltage and load conditions.
  • Low Dropout: With a low dropout voltage, this regulator can operate efficiently even when the input voltage is very close to the output voltage, reducing power losses and improving overall system efficiency.
  • High Current Capability: The device can deliver up to 1A of continuous output current, making it suitable for high-power applications.
  • Thermal Protection: The LD49100PU25RY includes thermal shutdown protection, safeguarding the device and the system from damage due to overheating.
  • Current Limiting: Built-in current limiting prevents damage from overcurrent conditions, enhancing the durability and reliability of the regulator.
  • Low Quiescent Current: Its low quiescent current helps in minimizing the power drain when the device is in standby mode, making it suitable for battery-powered applications.
  • Package: The regulator is available in a compact DFN6 (3x3 mm) package, which is ideal for space-constrained applications.

Applications

The LD49100PU25RY is versatile and can be used in various applications, including:

  • Battery-powered devices
  • Portable and handheld equipment
  • Microprocessor and microcontroller systems
  • Wireless communication devices
  • Power management for IoT devices

With its combination of high performance, reliability, and compact footprint, the LD49100PU25RY from STMicroelectronics is an excellent choice for designers looking to improve the power efficiency and stability of their electronic systems.
