Products specifications

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 16V
Nominal Output Voltage (Min/Fixed) 3.3V
Dropout Voltage-Max 0.7V @ 500mA
Output Current 500mA
Operating Supply Current 1mA to 12mA
PSRR 80dB to 65dB (120Hz to 65dB)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 3.3V
Voltage - Dropout (Typical) 0.4V @ 500mA
Mounting SMD (SMT)
Case / Package PPAK
Win Source Part Number 002471-LF33CPT-TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LF33CPT-TR CAD Model

Description

The LF33CPT-TR from STMicroelectronics is a highly reliable, low dropout voltage regulator (LDO) designed to provide a stable power supply for various electronic applications. This LDO is capable of delivering a continuous output current of up to 500 mA, making it suitable for powering low-power devices and microcontrollers.

Key Features

  • Output Voltage: The device provides a precise output voltage of 3.3V, which is essential for ensuring the stable operation of sensitive electronic circuits.
  • Low Dropout Voltage: With its low dropout performance, the LF33CPT-TR can maintain regulation with a minimal difference between the input and output voltages, enhancing efficiency in the system.
  • High Output Current: The capability to supply a maximum current of 500 mA makes this LDO versatile for a wide range of applications.
  • Thermal Overload Protection: The built-in thermal protection feature prevents the device from overheating, ensuring long-term reliability and safety.
  • Short Circuit Protection: In the event of a short circuit, the regulator will automatically shut down to protect the device and the connected load.
  • Low Quiescent Current: The LF33CPT-TR has a low quiescent current, which minimizes power consumption when the device is in standby mode, making it ideal for battery-powered applications.

Applications

The LF33CPT-TR is suitable for a broad range of applications that require a stable and reliable power supply. It is commonly used in:

  • Battery-powered devices
  • Microcontroller power supplies
  • Portable electronics
  • Automotive electronics
  • Telecommunication equipment

Package and Availability

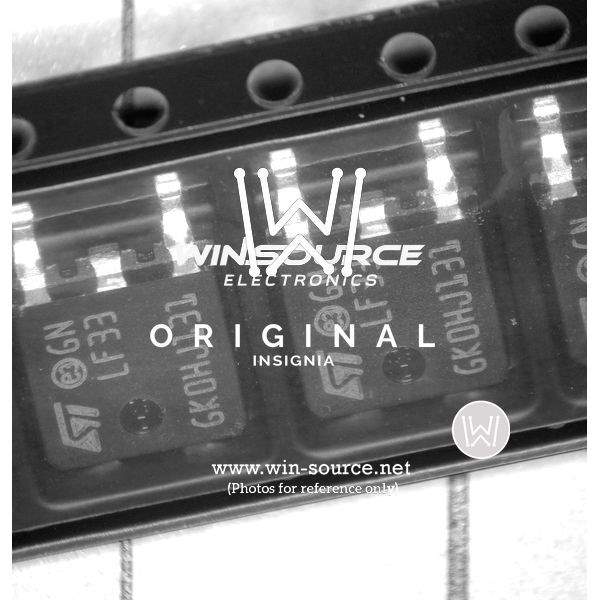

The LF33CPT-TR is available in a TO-252 (DPAK) package, which is designed for surface mount technology (SMT) and is suitable for automated assembly processes. This product is available in tape and reel format (TR suffix), facilitating efficient handling and manufacturing.

With its robust design and comprehensive protection features, the LF33CPT-TR voltage regulator from STMicroelectronics is an excellent choice for designers looking to ensure a stable and secure power supply in their electronic circuits.
