Products specifications

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Clock/Calendar
Features Alarm, Leap Year, Watchdog Timer
Date Format YY-MM-DD-dd
Supply Voltage - Operating 1.3 V to 4.4 V
Current - Timekeeping (Max) 0.7μA to 0.95μA @ 1.3V to 4.4V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)

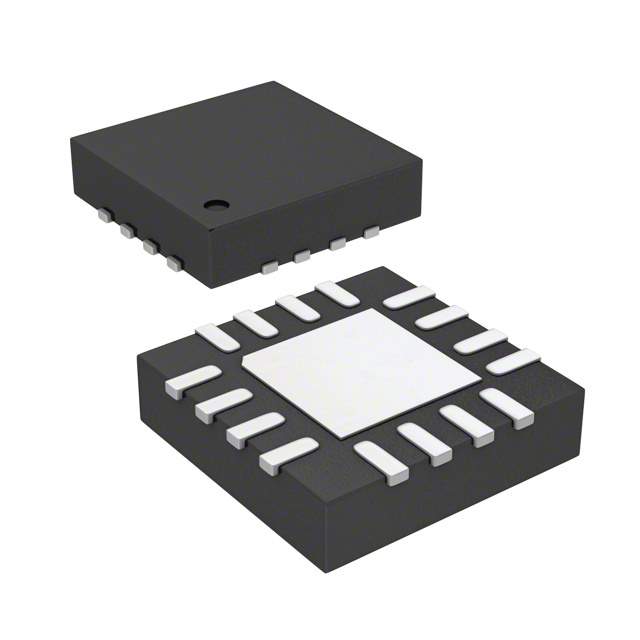

Case / Package 16-QFN (3x3)
Win Source Part Number 072937-M41T65Q6F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name M41T65
Introduction Date November 13, 2003
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian M41T65Q6F CAD Model

Description

The M41T65Q6F is a low-power serial real-time clock (RTC) with a built-in 32.768 kHz oscillator from STMicroelectronics. Designed for high accuracy and reliability, it is a perfect solution for a wide range of applications that require an accurate time base or time-stamping functionality such as embedded systems, servers, data loggers, and industrial equipment.

Key Features

  • High Accuracy: The device maintains precise time tracking and has been optimized to keep time with minimal drift over a wide temperature range.
  • Low Power Consumption: It is specifically engineered for battery-powered applications, with a very low current draw in both active and standby modes, thus ensuring a longer battery life.
  • Serial Interface: Equipped with an I2C interface, the M41T65Q6F allows for easy integration into microcontroller-based systems, providing a simple communication protocol for time data exchange.
  • Automatic Leap Year Compensation: The RTC accounts for leap years up to the year 2099, providing a hassle-free timekeeping experience.
  • Programmable Alarm: A programmable alarm function enables the device to wake up a system at a predetermined time, making it ideal for scheduled operations.
  • Additional Features: It includes features such as a programmable square wave output, and a countdown timer with interrupt capability which add to its versatility in various applications.

Applications

The M41T65Q6F is suited for a broad range of applications, including, but not limited to:

  • Consumer Electronics
  • Industrial Control Systems
  • Networking Equipment
  • Health and Fitness Devices
  • Smart Home Devices

With its combination of accuracy, low power, and easy integration, the M41T65Q6F from STMicroelectronics represents a robust and reliable solution for timekeeping in your next project or product.
