Products specifications

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Active
Type Clock/Calendar
Features Leap Year
Date Format YY-MM-DD-dd
Supply Voltage - Operating 4.75 V to 5.5 V
Current - Timekeeping (Max) 3mA @ 4.7V to 5.5V
Temperature Range - Operating 0°C to 70°C
Mounting Through Hole
Case / Package 24-PCDIP, CAPHAT
Win Source Part Number 083320-M48T02-150PC1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Security, Communications & Networking
Ultra Librarian 3D Model Ultra Librarian M48T02-150PC1 CAD Model

Description

Overview of the M48T02-150PC1 Timekeeper SRAM

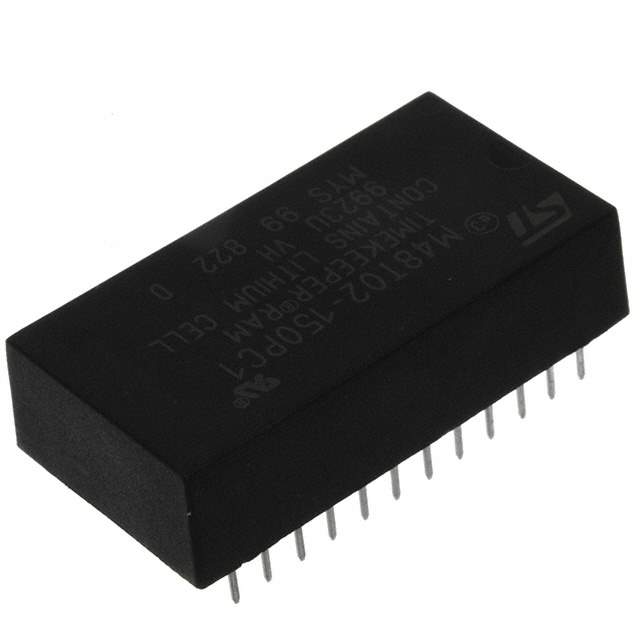

The M48T02-150PC1 is a 16 Kbit 2Kb x 8 TIMEKEEPER® Static RAM integrated circuit designed and manufactured by STMicroelectronics. This high-performance, low-power SRAM with a built-in real-time clock (RTC) is an essential component for applications requiring reliable data storage and precise timekeeping in a single package.

Key Features

  • Integrated Real-Time Clock (RTC): The device includes a quartz crystal controlled oscillator providing precise time tracking, with clock/calendar functionality that accounts for seconds, minutes, hours, day, date, month, and year information.
  • Non-Volatile Storage: The M48T02-150PC1 features a self-contained lithium battery, which ensures data retention and a functioning clock for over 10 years in the absence of external power.
  • Large Memory Capacity: With a 2Kb x 8 SRAM configuration, it offers ample space for data storage that can be easily accessed and modified.
  • Fast Access Time: The device boasts a 150ns access time, making it suitable for high-speed microprocessor systems.
  • Byte-Wide Interface: It offers a straightforward, byte-wide interface that simplifies integration into a variety of system architectures.
  • Low Power Consumption: Designed for energy efficiency, this SRAM is ideal for battery-powered and portable applications.

Applications

The M48T02-150PC1 is versatile and can be used in a wide range of applications, including:

  • Industrial control systems
  • Utility meters
  • POS terminals
  • Network routers and switches
  • Medical equipment
  • Security systems

Technical Specifications

  • Memory Size: 16 Kbit
  • Package: 24-pin, 600 mil DIP
  • Operating Temperature Range: 0°C to +70°C
  • Voltage Supply: 4.75V to 5.5V
  • Encapsulation: Hermetically sealed to prevent data corruption from environmental factors.

With its robust feature set, the M48T02-150PC1 from STMicroelectronics is an ideal solution for systems that require reliable non-volatile memory storage with an integrated timekeeping mechanism.
