Products specifications Report Issue?

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5.8V
Minimum Breakdown Voltage 6.45V
Max Clamping Voltage 13.4V
Peak Pulse Current(Ippm) 746A (8/20μs)
Power Dissipation - Pd 1500W (1.5kW)
Applications General Purpose
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SMC
Win Source Part Number 037925-SM15T6V8CA
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SM15T6V8CA CAD Model

Description

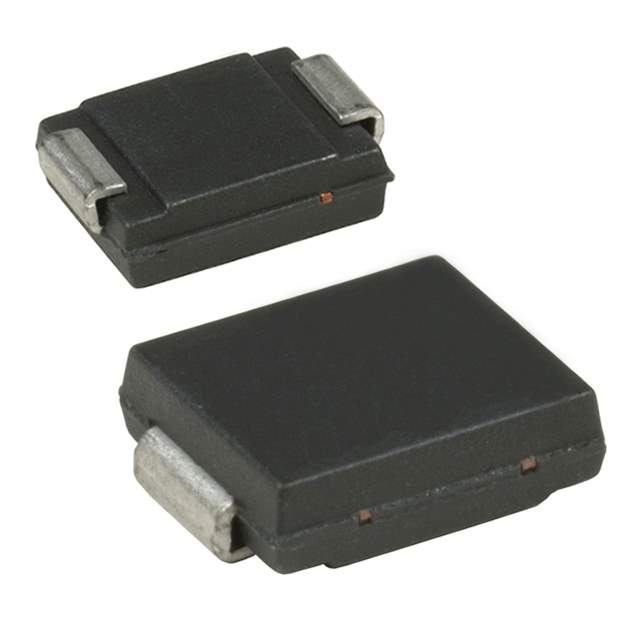

The SM15T6V8CA is a robust Transient Voltage Suppressor (TVS) diode from STMicroelectronics designed to protect sensitive electronic equipment from voltage transients induced by system-level events such as load dump, lightning, and electrostatic discharge (ESD). This TVS diode is part of the SM15T series, renowned for its high surge capability and fast response time, making it an ideal choice for safeguarding vulnerable circuits.

Key Features

  • Stand-off Voltage: The device has a stand-off voltage of 5.8V, which is the maximum voltage that the diode can withstand without conducting in its off state.
  • Peak Pulse Power: It offers a peak pulse power dissipation of 1500W (10/1000µs), ensuring protection against high energy transients.
  • Bi-directional Protection: The SM15T6V8CA is a bi-directional TVS, which means it can provide protection for both polarities of voltage spikes, simplifying circuit design.
  • Low Clamping Voltage: Upon the occurrence of a transient event, the TVS diode clamps the overvoltage to a safe level, minimizing the risk to the protected component.
  • ISO 7637-2 and ISO 16750-2 Compliant: The device meets the specifications of the ISO standards for road vehicles, ensuring reliability in automotive applications.

Applications

The SM15T6V8CA is suitable for a wide range of applications where transient voltage protection is critical. It is commonly used in:

  • Automotive systems
  • Industrial applications
  • Power supply lines
  • Portable devices
  • Telecommunication systems

Quality and Reliability

STMicroelectronics is committed to delivering high-quality products. The SM15T6V8CA is manufactured with the industry's best practices and rigorous testing to ensure its performance and durability. With its excellent surge suppression characteristics, this TVS diode is an essential component for designers looking to enhance the reliability and longevity of their electronic systems.
