Products specifications

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 64.1V
Minimum Breakdown Voltage 71.3V
Max Clamping Voltage 134V
Peak Pulse Current(Ippm) 75A (8/20μs)
Power Dissipation - Pd 1500W (1.5kW)
Applications Automotive
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SMC
Win Source Part Number 1096950-SM15T75CAY
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SM15T75CAY CAD Model

Description

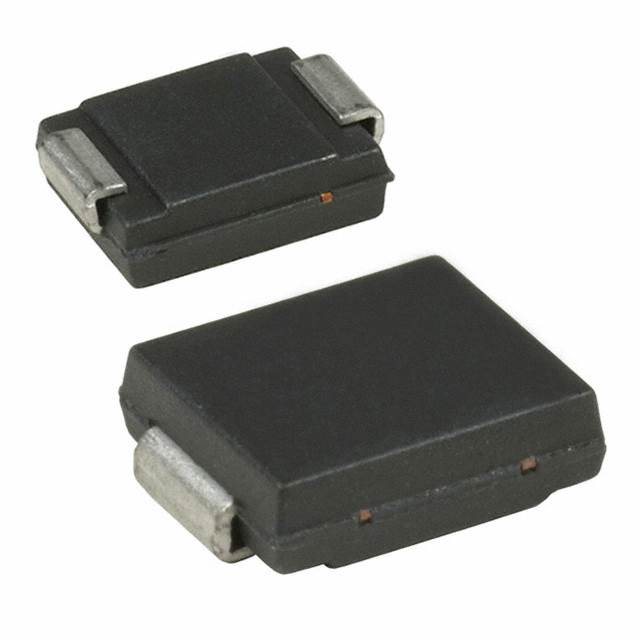

Product Overview: SM15T75CAY

The SM15T75CAY is a state-of-the-art transient voltage suppression (TVS) diode from STMicroelectronics, designed to protect sensitive electronic equipment from voltage spikes and surges. This robust component is specifically engineered to safeguard voltage-sensitive devices against transient voltage events such as electrostatic discharge (ESD), electrical fast transients (EFT), and other induced surge voltages.

Key Features

  • High Surge Capability: The SM15T75CAY can handle surge currents, providing reliable protection against severe transient events.
  • Stand-off Voltage: With a stand-off voltage of 75V, it is well-suited for a range of applications that require a higher voltage rating to ensure safety and reliability.
  • Peak Pulse Power: It offers a peak pulse power dissipation of 1500W (10/1000µs), ensuring that devices remain safe even under high-power surge conditions.
  • Low Clamping Voltage: The low clamping voltage feature ensures that the protected component is exposed to minimal stress during surge events.
  • Uni-directional Device: The SM15T75CAY is a uni-directional TVS diode, providing protection in one direction, which is ideal for DC voltage applications.
  • Package: Housed in a robust SMB (DO-214AA) package, it offers a compact footprint for printed circuit boards.

Applications

The SM15T75CAY is versatile and can be used in a wide range of applications, including:

  • Power supply units
  • Automotive systems
  • Telecommunication devices
  • Computer interfaces
  • Industrial controls

Quality and Reliability

STMicroelectronics is known for its commitment to quality, and the SM15T75CAY is no exception. It is manufactured to meet the highest industry standards for performance and reliability. The device is RoHS compliant and is designed to meet the ISO 9001 quality management system, ensuring that it meets the stringent requirements of the most demanding electronic protection applications.

Conclusion

In summary, the SM15T75CAY from STMicroelectronics is an essential component for designers looking to enhance the durability and longevity of their electronic products. With its robust surge protection capabilities and high reliability, it stands as an optimal solution for safeguarding sensitive circuits against the perils of transient voltages.
