Products specifications

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series Automotive, AEC-Q100, SPC58
Product Status Obsolete
Core Processor e200z420
Core Size 32-Bit Dual-Core
Speed 180MHz
Connectivity CANbus, Ethernet, FlexRay, I²C, LINbus, SPI
Peripherals DMA
Number of I/O 64
Program Memory Size 4MB (4M x 8)
Program Memory Type FLASH
EEPROM Size 128K x 8
RAM Size 512K x 8
Supply Voltage - Operating 3.3V, 5V
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting SMD (SMT)

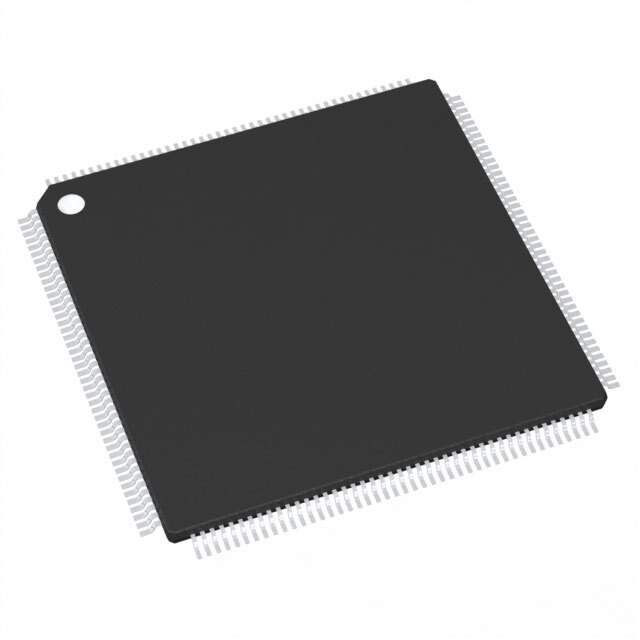

Package / Case 176-LQFP Exposed Pad
Supplier Device Package 176-eLQFP (24x24)
Base Product Number SPC58
Standard Package 500
REACH Status REACH Unaffected
Win Source Part Number 1263425-SPC58EC80E7FMC0X
Ultra Librarian 3D Model Ultra Librarian SPC58EC80E7FMC0X CAD Model

Description

SPC58EC80E7FMC0X: A High-Performance Automotive Microcontroller

The SPC58EC80E7FMC0X is a cutting-edge microcontroller unit (MCU) from STMicroelectronics, specifically designed to meet the rigorous demands of modern automotive applications. This powerful MCU is part of the SPC5 Chorus series, which is renowned for its high computational performance, advanced security features, and exceptional reliability under harsh conditions.

Core Features

  • Advanced Processing Capabilities: At the heart of the SPC58EC80E7FMC0X is a 32-bit Power Architecture® with a dual e200z4d core, each running at up to 80 MHz. This provides the processing muscle needed to handle complex automotive applications such as engine management, transmission control, and advanced driver-assistance systems (ADAS).
  • Memory: The MCU comes equipped with 6MB of flash memory and 768KB of RAM, ensuring ample storage for application code and efficient runtime data handling.
  • Rich Set of Peripherals: An extensive range of integrated peripherals supports a variety of automotive functions. These include multiple CAN interfaces, LIN, FlexRay, and Ethernet for communication, as well as numerous timers, ADCs, and PWM units for control tasks.

Enhanced Security

Security is a paramount concern in automotive systems, and the SPC58EC80E7FMC0X addresses this with a multi-layered approach. It features a Hardware Security Module (HSM), which provides robust protection against tampering and unauthorized access, ensuring the integrity and confidentiality of the software running on the MCU.

Robust Design for Automotive Environments

The SPC58EC80E7FMC0X is engineered to withstand the extreme conditions found in automotive environments. It operates over a wide temperature range and is compliant with the AEC-Q100 standard for automotive quality. Its low-power design also helps to reduce the overall energy consumption of the vehicle's electronic systems.

Development Support

STMicroelectronics provides comprehensive development support for the SPC58EC80E7FMC0X, including software libraries, development tools, and evaluation boards. This ecosystem facilitates rapid prototyping and development, allowing automotive engineers to bring their applications to market quickly and efficiently.

With its robust feature set, the SPC58EC80E7FMC0X is an excellent choice for automotive manufacturers looking to innovate and enhance the performance and security of their next-generation vehicles.
