Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer STMicroelectronics
Main Purpose Lighting, Ballast Control
Embedded Yes, MCU, 8-Bit
Utilized IC / Part L6382D5, ST7FLITE49K2
Primary Attributes 70W for HID Metal Halide Lamps
Supplied Contents Board(s)
Win Source Part Number 778172-STEVAL-ILH004V1
Popularity Medium
Supply and Demand Status Sufficient
Family Name STEVAL-ILH004V1
Introduction Date October 06, 2011
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILH004V1 CAD Model

Description

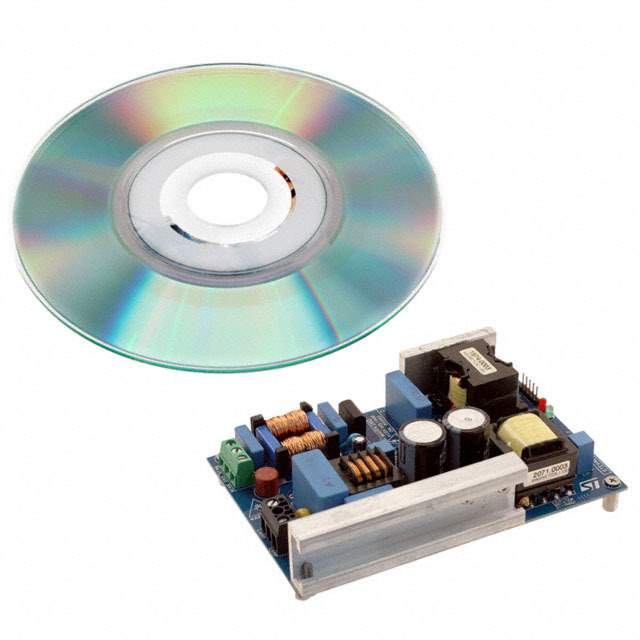

The STEVAL-ILH004V1 from STMicroelectronics is a state-of-the-art digital LED lighting driver solution designed to provide high efficiency and reliability for a wide range of lighting applications. This evaluation board is built around the ST's LED6000 monolithic current mode PWM controller, which is optimized for driving LEDs with a constant current for high brightness and uniformity.

This versatile platform is ideal for developing LED lighting solutions such as indoor and outdoor lighting, architectural lighting, and signage. With its advanced features and programmable parameters, the STEVAL-ILH004V1 allows designers to experiment with different configurations and find the optimal settings for their specific requirements.

Key Features:

  • Wide Input Voltage Range: The board can handle an input voltage range from 6.5V to 48V, making it suitable for a variety of power supplies and applications.
  • High Efficiency: The LED6000 controller ensures high efficiency, which translates to energy savings and reduced heat generation.
  • Adjustable Output Current: Designers can set the output current up to 3A, allowing for control over the brightness of the LED array.
  • Dimming Capability: The board supports both analog and PWM dimming, offering flexibility to implement different light intensity profiles.
  • Protection Features: The evaluation board includes under-voltage lockout, thermal shutdown, and over-current protection to ensure the longevity and safety of the LED driver.
  • Compact Design: The STEVAL-ILH004V1's small form factor enables it to be integrated into a variety of lighting fixtures without significant space constraints.

The board is equipped with connectors for easy integration and testing, and it is supported by comprehensive documentation and design tools available from STMicroelectronics. This includes application notes, reference designs, and simulation models to facilitate rapid development and deployment of advanced LED lighting systems.

With the STEVAL-ILH004V1, designers can quickly prototype and test their LED lighting solutions, reducing time-to-market and ensuring a high-performance end product. It is a testament to STMicroelectronics' commitment to providing innovative solutions for the ever-evolving LED lighting industry.
