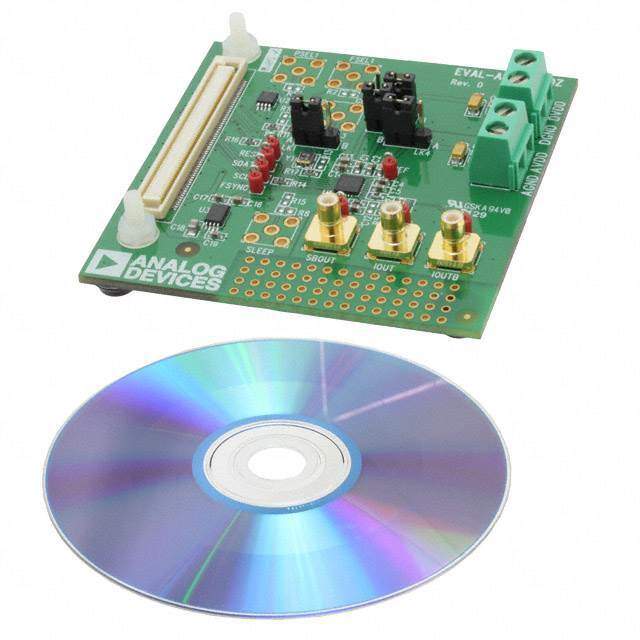

The EVAL-AD9838SDZ from Analog Devices Inc. is a highly integrated evaluation board designed specifically for the AD9838, a low-power, programmable waveform generator capable of producing sine, triangular, and square wave outputs. This evaluation board enables designers to quickly prototype and test the functionalities of the AD9838 chip in various applications such as signal generation, waveform creation, and other electronic testing scenarios.

Key Features

• Programmable Waveforms: The AD9838 allows for the generation of sine, triangular, and square waves, providing flexibility for a variety of signal processing applications.
• Low Power Consumption: Optimized for battery-powered and portable applications, the AD9838 is designed for low power consumption without compromising performance.
• Frequency and Phase Modulation: With onboard capabilities for direct digital synthesis (DDS), the device supports both frequency and phase modulation, enabling complex waveform generation.
• Easy to Use: The EVAL-AD9838SDZ comes with an intuitive user interface and software that simplifies the process of configuring the waveform generator.
• Flexible Voltage Supply: The board can be powered by a wide range of supply voltages, making it versatile for use in different system configurations.

Applications

The versatility of the EVAL-AD9838SDZ makes it suitable for a wide array of applications, including:

• Function generators
• Portable instrumentation
• Signal generators
• Benchtop test and measurement equipment
• Embedded systems

Technical Specifications

The AD9838 is a precision waveform generator featuring a 25 MHz clock rate and a 10-bit phase accumulator, ensuring high-resolution signal generation. The digital programmability of the device allows for fine-tuning of frequency and phase, which is critical for applications requiring precise control over signal parameters. The EVAL-AD9838SDZ provides a convenient platform for exploring these capabilities and integrating the AD9838 into various electronic designs.
