Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Current - Output / Channel 350mA, 700mA, or 1.05A
Outputs and Type 1, Non-Isolated
Voltage - Output 35V
Features Thermal Shutdown Protection
Voltage - Input 12VAC, 6 V ~ 24 V
Supplied Contents Board(s)
Utilized IC / Part L5973
Other Names 497-5074
Standard Package 1
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283832-STEVAL-ILL007V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL007V1 CAD Model

Description

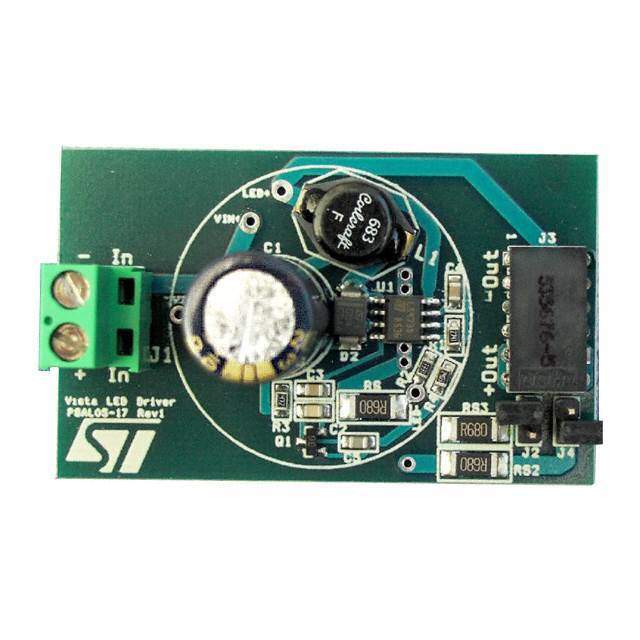

The STEVAL-ILL007V1 from STMicroelectronics is an advanced evaluation platform designed for testing and optimizing LED lighting solutions. This evaluation board is specifically tailored to drive LEDs with high efficiency and precision, making it an ideal choice for developers and engineers looking to explore the capabilities of STMicroelectronics' LED driver technology.

At the heart of the STEVAL-ILL007V1 is the innovative LED6000 chip, a step-down monolithic switching regulator designed to deliver constant current for powering high brightness LEDs. With a wide input voltage range from 4.5V to 60V, this evaluation board is versatile enough to handle a broad spectrum of LED applications, from automotive lighting to industrial illumination.

The evaluation board is equipped with numerous features that ensure a user-friendly experience and facilitate the development process. It includes an onboard jumper for enabling or disabling the device, a potentiometer for adjusting the LED brightness, and test points for monitoring the voltage and current parameters. Furthermore, the LED6000's internal PWM dimming and analog dimming capabilities allow for fine-tuned control over the light output, making it possible to achieve the desired luminosity with precision.

Safety is a key consideration in the design of the STEVAL-ILL007V1. The board includes overvoltage, overcurrent, and thermal protection features to ensure reliable operation under various conditions. These protective measures not only safeguard the board and the LEDs but also contribute to the longevity of the lighting solution.

The compact and robust design of the STEVAL-ILL007V1 makes it an excellent platform for testing and prototyping. Whether you are a hobbyist experimenting with LED technology or a professional engineer working on a sophisticated lighting project, the STEVAL-ILL007V1 evaluation board provides the performance, flexibility, and reliability needed to bring your LED lighting concepts to life.

For detailed technical specifications, application notes, and additional resources, users can visit the STMicroelectronics website or contact their support team for further assistance.
