Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Box
Outputs and Type 1, Non-Isolated
Voltage - Input 3V ~ 18V
Supplied Contents Board(s)
Utilized IC / Part ST1CC40
Base Product Number STEVAL
Other Names 497-14487
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283891-STEVAL-ILL046V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL046V1 CAD Model

Description

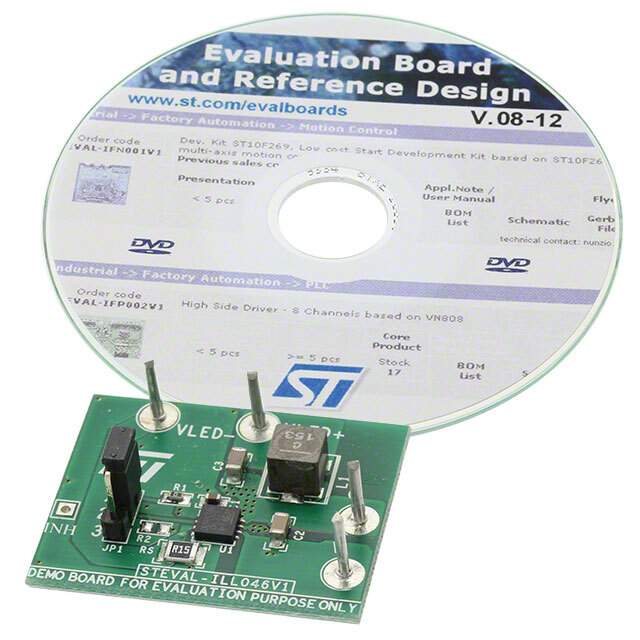

The STEVAL-ILL046V1 is a state-of-the-art LED driver evaluation board from STMicroelectronics, designed to showcase the capabilities of the LED6000 step-down monolithic switching regulator in a typical LED driving application. This evaluation board is ideal for professionals and hobbyists alike who are looking to explore the features and performance of the LED6000 in driving a single LED string with up to 3 A of current.

Key Features

  • Integrated LED6000 step-down (buck) regulator capable of delivering up to 3 A of current.
  • Wide input voltage range from 6.5 V to 48 V, accommodating a variety of power sources.
  • High efficiency operation thanks to the LED6000's low quiescent current and adaptive real-time control.
  • Adjustable output current through an external resistor, providing flexibility in controlling LED brightness.
  • Pulse-width modulation (PWM) dimming capability, allowing for precise control over the light intensity.
  • Open LED detection and overcurrent protection features enhance the safety and reliability of LED driving applications.
  • Thermal shutdown and overvoltage protection ensure the board's longevity and robust performance.
  • User-friendly layout with test points and indicators to facilitate evaluation and prototyping.

Applications

The STEVAL-ILL046V1 is versatile in its applications, suitable for driving high-brightness LEDs in a variety of settings, including architectural lighting, street lighting, headlight systems, and industrial lighting. The board's robust design and comprehensive feature set make it a great starting point for developing efficient and reliable LED lighting solutions.

Why Choose STEVAL-ILL046V1?

For developers looking to quickly implement an LED driving solution, the STEVAL-ILL046V1 offers a plug-and-play experience with the assurance of STMicroelectronics' quality and support. With its high-performance characteristics and user-friendly interface, the STEVAL-ILL046V1 is an excellent tool for evaluating the LED6000 regulator and for expediting the development of custom LED lighting applications.
