Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr STMicroelectronics
Package Box
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Voltage - Output 1.2V
Current - Output 700mA
Voltage - Input 2.5V ~ 5.5V
Regulator Topology Buck
Frequency - Switching 1.7MHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part ST1S12
Base Product Number STEVAL
Other Names 497-8219,STEVALISA055V1,-497-8219
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1284309-STEVAL-ISA055V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ISA055V1 CAD Model

Description

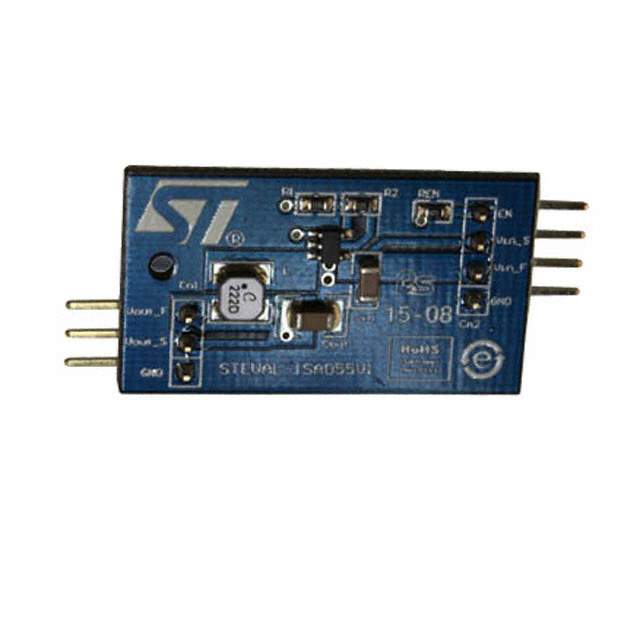

STEVAL-ISA055V1 - Voltage Regulator Evaluation Board from STMicroelectronics

The STEVAL-ISA055V1 is a highly efficient evaluation board designed by STMicroelectronics, a global semiconductor leader known for its cutting-edge technology. This product is part of ST's portfolio of evaluation tools that enable designers and engineers to test and validate the performance of specific electronic components in a practical and user-friendly environment.

At the heart of the STEVAL-ISA055V1 is the L7986A, a step-down switching voltage regulator capable of delivering up to 3 A of continuous current to the load with excellent line and load regulation. The adjustable output voltage range from 0.8 V to the voltage value close to the input voltage, and a wide input voltage range from 4.5 V to 38 V, makes this evaluation board a versatile solution for a wide array of applications.

The L7986A regulator integrated on the STEVAL-ISA055V1 boasts a high switching frequency that can be adjusted up to 1 MHz, allowing for the use of small surface-mount inductors and capacitors, thereby reducing the overall solution size and bill of materials. Additionally, the device features a low dropout operation, which is essential for applications requiring maximum efficiency across a wide range of input voltages.

For protection and reliability, the STEVAL-ISA055V1 includes various features such as overcurrent protection, thermal shutdown, and soft-start circuitry. These features ensure the safe operation of the evaluation board under different conditions, safeguarding both the board and the components from potential damage.

The evaluation board is also equipped with jumpers and test points that provide flexibility and ease of use during testing. Engineers can easily adjust configuration settings and monitor the performance of the L7986A regulator, facilitating a quick and effective evaluation process.

Whether you are developing power supplies for consumer electronics, industrial systems, or automotive applications, the STEVAL-ISA055V1 evaluation board from STMicroelectronics is an excellent tool to expedite your design process and help you achieve a robust and efficient power management solution.
