Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - Sensors
Mfr STMicroelectronics
Series MEMS
Package Bulk
Product Status Obsolete
Sensor Type Gyroscope, 2 Axis
Sensing Range ±300°/sec
Interface Analog
Sensitivity 33.3mV/°/s
Embedded No
Supplied Contents Board(s)
Utilized IC / Part LPR430AL
Other Names STEVALMKI097V1,497-10688
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN OBSOLETE
HTSUS 8473.30.1180
Win Source Part Number 1283631-STEVAL-MKI097V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-MKI097V1 CAD Model

Description

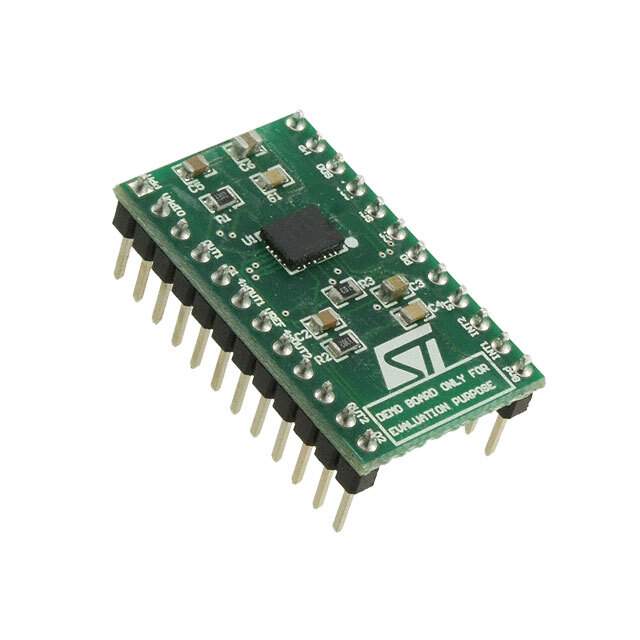

STEVAL-MKI097V1 - Inertial Module Adapter Board from STMicroelectronics

The STEVAL-MKI097V1 is a sophisticated adapter board designed by STMicroelectronics to facilitate the development and testing of various MEMS sensors in the LSM6DSM product family. As a state-of-the-art inertial module, it is an essential tool for designers and engineers looking to incorporate high-precision and low-power 3D accelerometers and 3D gyroscopes into their applications.

This adapter board is specifically crafted to be plugged into a standard DIL 24 socket, which allows for easy integration into a test environment or existing applications. The onboard LSM6DSM is a system-in-package featuring a 3D digital accelerometer and a 3D digital gyroscope, which are both optimized for mobile applications, offering industry-leading performance in terms of power consumption and noise levels.

Key features of the STEVAL-MKI097V1 include:

  • Compatibility with the STEVAL-MKI109V2 motherboard
  • LSM6DSM MEMS sensor with extended temperature range
  • High-resolution, low-power 3D accelerometer and 3D gyroscope
  • Embedded temperature sensor
  • I2C/SPI digital output interface
  • ODR (Output Data Rate) flexibility, ranging from 12.5 Hz to 6.66 kHz
  • Smart FIFO up to 4 kB
  • Hard, soft ironing for external magnetic sensor corrections

The board is particularly advantageous for the development of applications such as gaming and virtual reality input devices, impact recognition and logging, vibration monitoring and compensation, and inertial navigation systems. Its robust design and comprehensive software support simplify the prototyping and testing phases, accelerating time-to-market for new products.

With the STEVAL-MKI097V1, users can exploit the full capabilities of the LSM6DSM sensor, including advanced features such as always-on 3D accelerometer and 3D gyroscope functions, and programmable finite state machine and machine learning core for advanced motion detection.

Whether you are working on IoT devices, wearable technology, or any application requiring precise motion tracking, the STEVAL-MKI097V1 adapter board from STMicroelectronics provides a reliable and versatile solution for your development needs.
