Products specifications

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Active
Core Processor ARM Cortex-M0
Part Core Size 32-Bit
Speed(Frequency) 48MHz
Number of I/O 15
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
Data RAM Size 4K x 8
Supply Voltage - Operating 2.4 V to 3.6 V
Data Converters A/D 11x12b
Temperature Range - Operating -40°C to 85°C (TA)

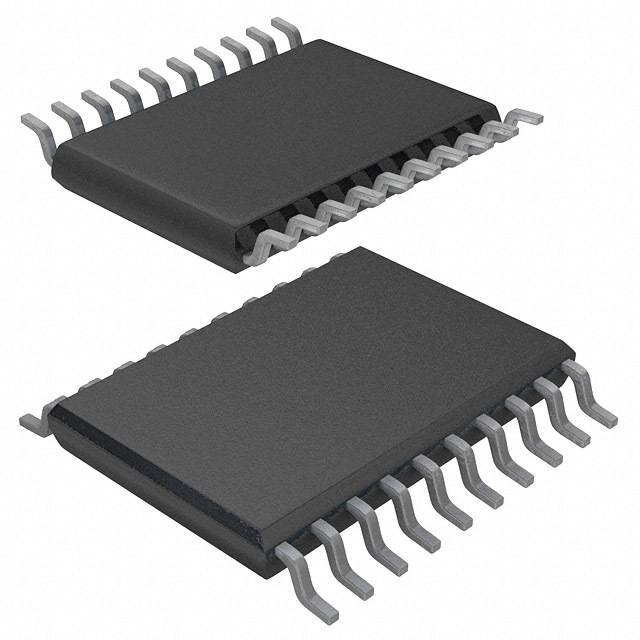

Dimension 20-TSSOP (0.173", 4.40mm Width)
Win Source Part Number 031244-STM32F030F4P6
Family Name STM32F030F4
Introduction Date July 04, 2013
ECCN 3A991.a.2
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2031
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian STM32F030F4P6 CAD Model

Description

STM32F030F4P6 Microcontroller by STMicroelectronics

The STM32F030F4P6 is a high-performance microcontroller from STMicroelectronics that belongs to their STM32F0 series, known for its exceptional efficiency, affordability, and flexibility. This microcontroller is built around a 32-bit ARM Cortex-M0 CPU and is designed to offer a cost-effective solution for a wide range of applications.

Key Features:

  • Core: ARM Cortex-M0 processor, running at frequencies of up to 48 MHz.
  • Memory: Comes with 16 Kbytes of Flash memory and 4 Kbytes of SRAM, providing ample space for small to medium-sized applications.
  • I/O Ports: Includes a rich set of I/Os and peripherals, such as GPIOs, I2C, SPI, and USART interfaces, enabling connectivity with various peripherals and sensors.
  • ADC: Features a 12-bit analog-to-digital converter with up to 5 channels, allowing for accurate measurement of analog signals.
  • Timers: Contains multiple timers including a basic timer, a 16-bit advanced-control timer, as well as multiple 16-bit general-purpose timers.
  • Power Efficiency: Designed for low power consumption with several power-saving modes, making it ideal for battery-operated applications.
  • Package: Available in a TSSOP20 package, which is suitable for space-constrained applications.
  • Development Support: Supported by a comprehensive set of development tools, software libraries, and the STM32Cube ecosystem for faster product development.

Applications:

The STM32F030F4P6 microcontroller is suitable for a variety of applications, including:

  • Consumer Electronics
  • Home Appliances
  • Industrial Automation
  • Motor Control Systems
  • Lighting Control
  • Smart Sensors

In conclusion, the STM32F030F4P6 from STMicroelectronics is a versatile and cost-effective microcontroller that brings the power of the ARM Cortex-M0 to a wide range of applications. Its combination of performance, memory, and peripherals, along with its low power consumption, makes it an excellent choice for designers looking to balance functionality with budget considerations.
