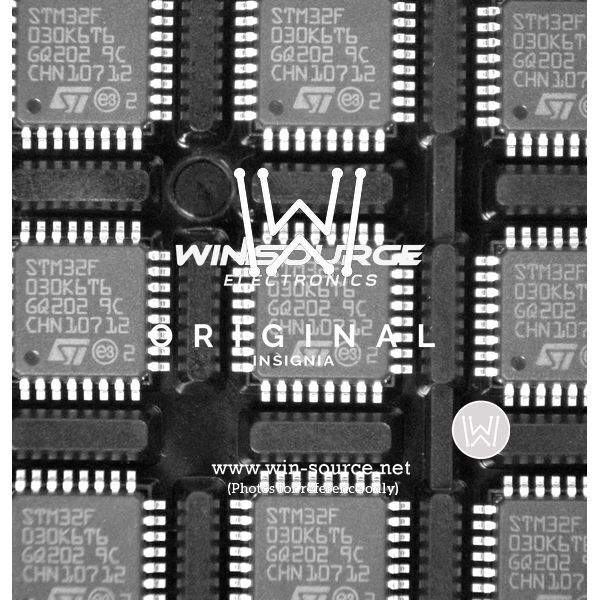

STM32F030K6T6 Microcontroller Overview

The STM32F030K6T6 is a high-performance ARM Cortex-M0 based microcontroller from STMicroelectronics, designed to offer a cost-effective solution for embedded applications. It is part of the STM32F0 series, which are well-known for their energy efficiency, robust performance, and integration of advanced peripherals. This particular microcontroller is suitable for a wide range of applications including industrial controls, consumer electronics, home appliances, and automotive systems.

Key Features

• Core: ARM Cortex-M0 processor, which can run up to 48 MHz.
• Memory: 32 Kbytes of Flash memory and 4 Kbytes of SRAM.
• Communication Peripherals: Integrated with a variety of communication interfaces such as I²C, USART, SPI, and HDMI CEC.
• Analog: Features an array of analog components including 10-bit ADCs, analog comparators, and DAC channels.
• Timers: Comes with multiple general-purpose timers and a SysTick timer, which are essential for managing time-critical tasks.
• I/O Ports: Up to 28 I/O ports that are highly flexible and 5V-tolerant, ensuring compatibility with a range of sensors and actuators.
• Debugging: Supports SWD (Serial Wire Debug) and has an integrated bootloader for simplified in-application programming.
• Supply Voltage: Can operate with a power supply range from 2.4V to 3.6V, making it suitable for battery-powered applications.
• Package: Available in a 32-pin LQFP package which is both space-saving and easy to integrate into PCB designs.

Applications

The STM32F030K6T6 microcontroller is incredibly versatile and can be used in a multitude of applications that require a balance between performance and power consumption. Its rich set of peripherals and the ease of development make it an ideal choice for:

• Smart sensors and general-purpose embedded systems
• Access control and security systems
• Small home appliances and smart home devices
• Personal electronics and wearable devices
• Automotive applications such as body controllers and LED lighting

With its robust architecture and extensive development ecosystem, the STM32F030K6T6 is a go-to microcontroller for engineers and designers looking to create efficient and reliable embedded solutions.
