Products specifications

Category Integrated Circuits (ICs)>Embedded - Microprocessors
Mfr STMicroelectronics
Series STM32MP1
Package Tray
Core Processor ARM® Cortex®-A7
Number of Cores/Bus Width 2 Core, 32-Bit
Speed 209MHz, 800MHz
Co-Processors/DSP ARM® Cortex®-M4
RAM Controllers DDR3, DDR3L, LPDDR2, LPDDR3
Graphics Acceleration Yes
Display & Interface Controllers HDMI-CEC, LCD
Ethernet 10/100Mbps, GbE
USB USB 2.0 (2), USB 2.0 OTG+ PHY (3)
Voltage - I/O 2.5V, 3.3V
Temperature Range - Operating -20°C ~ 105°C (TJ)
Security Features ARM TZ

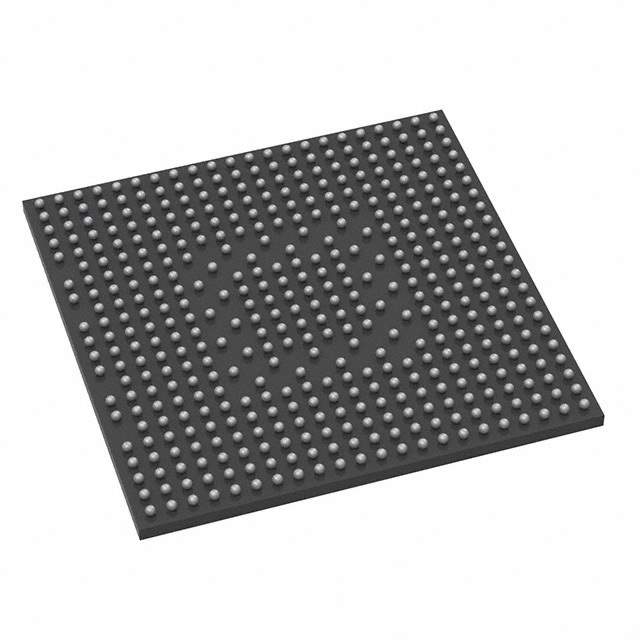

Package / Case 448-LFBGA
Supplier Device Package 448-LFBGA (18x18)
Additional Interfaces CAN, Ethernet, I²C, MMC/SD/SDIO, SPDIF, SPI, UART, USB
Base Product Number STM32
Other Names 497-STM32MP157FAA1
Standard Package 84
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.31.0001
Win Source Part Number 1261837-STM32MP157FAA1
Ultra Librarian 3D Model Ultra Librarian STM32MP157FAA1 CAD Model

Description

The STM32MP157FAA1 is a highly capable microprocessor from STMicroelectronics, designed to cater to the demanding requirements of modern embedded systems. This product is part of the STM32 family, which is renowned for its high performance, rich set of peripherals, and low-power operation.

At the heart of the STM32MP157FAA1 is a dual-core configuration consisting of an ARM® Cortex®-A7 core operating at up to 800 MHz and a Cortex®-M4 core with a frequency of up to 209 MHz. This dual-core architecture allows for a versatile balance between high-performance processing and real-time task management, making it an ideal choice for applications requiring complex operating systems alongside time-critical operations such as industrial control, consumer electronics, and Internet of Things (IoT) devices.

The microprocessor is equipped with a rich set of peripherals and I/Os which are accessible through various package options. It features an advanced 3D graphics processing unit (GPU) that supports OpenGL ES 2.0, enabling sophisticated graphical user interfaces and enhanced visual experiences. Additionally, it includes a TFT LCD controller, which allows for direct connection to an external display panel.

Security is a key aspect of the STM32MP157FAA1, with features such as hardware cryptographic acceleration, secure boot, and a TrustZone® for ARMv7-M. These features provide the necessary tools to create secure systems that can protect against unauthorized access and software piracy.

For connectivity, the STM32MP157FAA1 offers a range of options including multiple USB 2.0 ports, Gigabit Ethernet, and several serial communication interfaces. Furthermore, it supports a wide range of external memory interfaces, making it highly adaptable to different system requirements.

STMicroelectronics provides comprehensive software support for the STM32MP157FAA1 with the STM32Cube ecosystem, which includes a Linux® Distribution, software development kits (SDKs), and a set of tools to support development and debugging. This extensive support ensures that developers can accelerate their product development cycle and bring their products to market faster.

Overall, the STM32MP157FAA1 is a powerful and flexible microprocessor that offers an optimal solution for developers looking to create advanced and secure embedded systems with high demands on processing power, connectivity, and graphical performance.
