Products specifications

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series STM8S
Package Tape & Reel
Core Processor STM8
Core Size 8-Bit
Speed 24MHz
Connectivity I2C, IrDA, LINbus, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 34
Program Memory Size 32KB (32K x 8)
Program Memory Type FLASH
EEPROM Size 1K x 8
RAM Size 6K x 8
Supply Voltage - Operating 2.95V ~ 5.5V
Data Converters A/D 9x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 44-LQFP
Base Product Number STM8
Other Names 497-19402-1,497-19402-2,STM8S207S6T6CTR,497-19402-6
Standard Package 1,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 1262047-STM8S207S6T6CTR
Ultra Librarian 3D Model Ultra Librarian STM8S207S6T6CTR CAD Model

Description

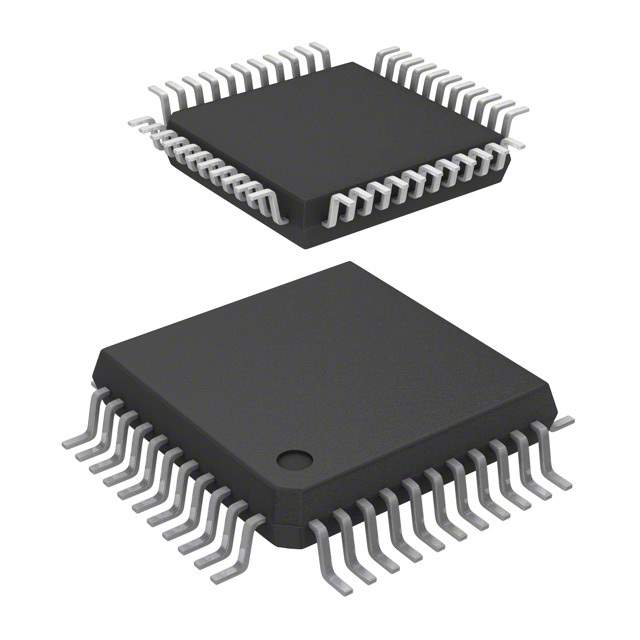

STM8S207S6T6CTR Microcontroller from STMicroelectronics

The STM8S207S6T6CTR is a high-performance microcontroller unit (MCU) from STMicroelectronics, designed to deliver an optimal balance between performance, power efficiency, and cost-effectiveness. This MCU is part of the STM8S series, which is well-suited for a wide range of applications, from industrial control systems to consumer electronics.

At the heart of the STM8S207S6T6CTR is an advanced 8-bit core, capable of running at up to 24MHz. This core is supported by 32KB of Flash program memory, which is ample for complex applications, and 2KB of RAM for data processing. Additionally, the MCU comes with 1KB of EEPROM, which is ideal for storing non-volatile data that must be preserved between resets or power cycles.

The device features a rich set of peripherals that enhance its capabilities for various tasks. These include:

  • Three 16-bit timers for precise event timing and PWM generation
  • An 8-bit timer for simple timing tasks
  • A 10-bit analog-to-digital converter (ADC) with up to 10 channels, allowing for accurate sensor readings and analog signal processing
  • Two UARTs for serial communication, which can be used for interfacing with other devices or for debugging purposes
  • A SPI and an I2C interface for communication with other microcontrollers, sensors, and peripherals
  • Up to 38 general-purpose I/O pins, which provide the flexibility to connect with a wide range of external devices

Integrated within the STM8S207S6T6CTR is an advanced clock control system, which includes an internal oscillator that reduces the need for external components. The MCU also features a flexible voltage range of 2.95V to 5.5V, making it suitable for both 3.3V and 5V applications.

The STM8S207S6T6CTR is available in a TSSOP 44-pin package, which is designed to save space on PCBs while still offering easy access to all of the MCU's functionalities. Its robust design and temperature range of -40°C to 85°C make it reliable for use in harsh environments.

Overall, the STM8S207S6T6CTR from STMicroelectronics is a versatile and reliable MCU that provides a cost-effective solution for a wide array of embedded system applications.
