Products specifications

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr STMicroelectronics
Package Tape & Reel
Product Status Obsolete
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 150 V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 820 mV @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 1.5 µA @ 150 V
Mounting SMD (SMT)

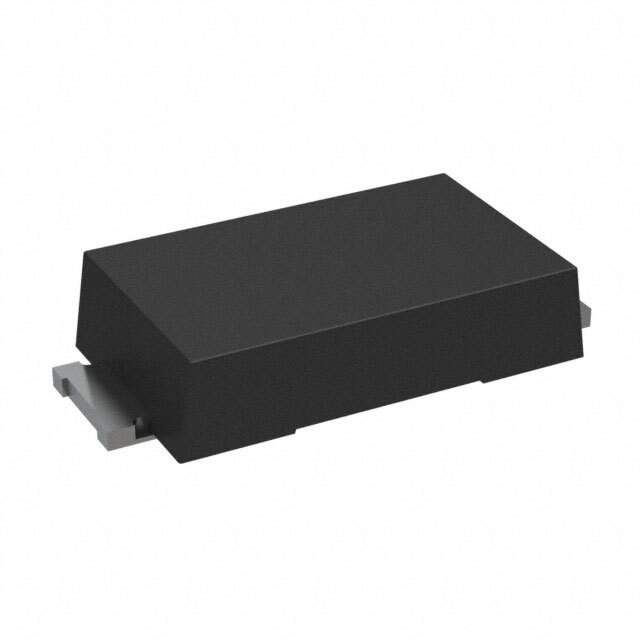

Package / Case DO-221AC, SMA Flat Leads
Supplier Device Package SMAflat Notch
Operating Temperature - Junction 175°C
Base Product Number STPS2150
Other Names 497-STPS2150AFNCT,497-STPS2150AFNTR,497-STPS2150AFNDKR
Standard Package 10,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1282074-STPS2150AFN
Ultra Librarian 3D Model Ultra Librarian STPS2150AFN CAD Model

Description

The STPS2150AFN is a robust and efficient power Schottky rectifier designed by STMicroelectronics, a leader in semiconductor solutions. This device is part of their STPS series, known for its high performance in power conversion applications. The STPS2150AFN is specifically tailored to meet the stringent requirements of both consumer and industrial markets, providing a reliable solution for a variety of electronic circuits.

Key Features

  • High Junction Temperature: With a maximum operating junction temperature (Tj) of 150°C, the STPS2150AFN can withstand high thermal conditions, making it suitable for demanding applications.
  • Low Forward Voltage Drop: The device offers a low forward voltage drop, which ensures high efficiency in power conversion, reducing power loss and improving overall system performance.
  • Avalanche Rated: Its capability to handle avalanche conditions makes the STPS2150AFN exceptionally rugged and reliable, which is crucial for applications prone to voltage transients.
  • High Surge Current Capability: The rectifier can handle high surge currents, providing excellent robustness during transient overloads.

Applications

The STPS2150AFN is versatile and is commonly used in a range of applications, such as:

  • Switch Mode Power Supplies (SMPS)
  • High-frequency DC/DC converters
  • Free-wheeling diodes
  • Reverse battery protection
  • Automotive applications

Specifications

Parameter Value Package TO-220FN Repetitive Peak Reverse Voltage (V<sub>RRM) 150 V Average Forward Current (I<sub>F(AV)) 2 x 15 A Non-Repetitive Peak Forward Surge Current (I<sub>FSM) 150 A

With its superior performance and reliability, the STPS2150AFN from STMicroelectronics is an excellent choice for engineers and designers looking to enhance the efficiency and durability of their power management systems.
