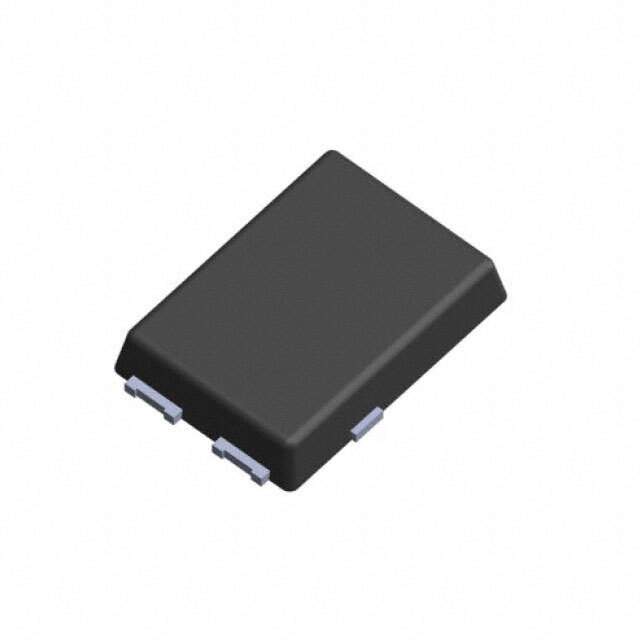

STPS5H100SF - Schottky Rectifier

The STPS5H100SF from STMicroelectronics is a robust and high-performance Schottky rectifier designed for a variety of applications that demand high efficiency and reliability. This power Schottky rectifier is particularly suitable for switch mode power supplies and high-frequency DC to DC converters.

Featuring a low forward voltage drop, the STPS5H100SF minimizes power loss and improves efficiency, making it an ideal choice for energy-sensitive circuits. The device is capable of handling continuous forward currents up to 5A, which allows it to be used in applications with moderate power requirements.

With a maximum repetitive peak reverse voltage of 100V, the STPS5H100SF is well-suited to withstand transient voltage spikes, ensuring stable operation even under stressful conditions. This characteristic is crucial for protecting sensitive electronics against potential overvoltage damage.

The STPS5H100SF is housed in a TO-220FP package, which offers a good balance between thermal performance and size. The fully molded package provides excellent insulation properties and high mechanical strength, which is essential for industrial and commercial environments where physical stresses can be an issue.

The device also features a junction temperature range of -40°C to +150°C, which ensures reliable operation across a wide temperature range, making it suitable for outdoor applications or equipment exposed to harsh temperature variations.

As with many STMicroelectronics products, the STPS5H100SF is designed with environmental impact in mind. It complies with RoHS and REACH regulations, ensuring that it does not contain hazardous substances and meets the requirements for environmentally-conscious manufacturing and product deployment.

In summary, the STPS5H100SF Schottky rectifier from STMicroelectronics is a high-performance component that combines efficiency, reliability, and robustness, making it a versatile choice for engineers and designers in the field of power management and conversion.
