Products specifications

Manufacturer STMicroelectronics
Win Source Part Number 1262113-STTA1512PI
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian STTA1512PI CAD Model

Description

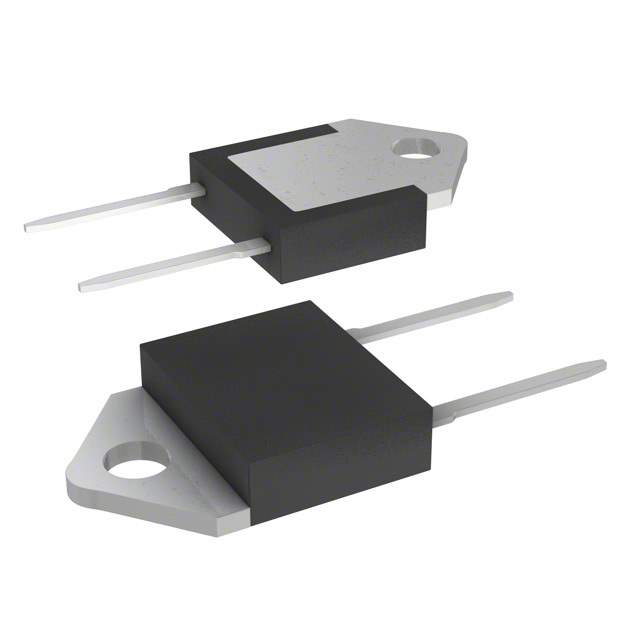

The STTA1512PI is a state-of-the-art ultrafast high voltage diode designed and manufactured by STMicroelectronics. This diode is specifically engineered to meet the demanding specifications of high-efficiency converter applications and power supplies. With its exceptional switching speed and robust performance, the STTA1512PI is an ideal choice for a wide range of electronic circuits.

Key Features

  • High Reverse Voltage: With a reverse voltage of 1200V, the STTA1512PI is suitable for high voltage applications, providing reliable operation and stability.
  • Ultrafast Switching: The diode boasts an ultrafast recovery time, which minimizes energy loss and improves efficiency during the switching process.
  • Low Forward Voltage Drop: A low forward voltage drop ensures reduced power dissipation and higher efficiency, which is critical in power conversion systems.
  • High Surge Current Capability: The device can handle high surge currents, making it robust against transient conditions and suitable for rugged applications.
  • Patented Free-Wheeling Diode Technology: The use of ST's patented free-wheeling diode technology enhances the overall performance of the diode, particularly in high-frequency operations.

Applications

The STTA1512PI is versatile and can be used in various applications, including:

  • Switched-mode power supplies (SMPS)
  • Freewheeling diodes in converters and motor control circuits
  • Power factor correction (PFC) circuits
  • Snubber diodes
  • High-frequency inverters

Product Specifications

Parameter Value Package ISOTOP Repetitive Peak Reverse Voltage (V<sub>RRM) 1200V Average Forward Current (I<sub>F(AV)) 15A Non-Repetitive Peak Forward Surge Current (I<sub>FSM) 150A Operating Junction Temperature (T<sub>j) -40°C to +150°C

With its robust design and superior electrical characteristics, the STTA1512PI is a top choice for professionals seeking high-performance diodes for their advanced electronic systems.
