Products specifications

Manufacturer STMicroelectronics
Win Source Part Number 1262124-STTA812DI
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian STTA812DI CAD Model

Description

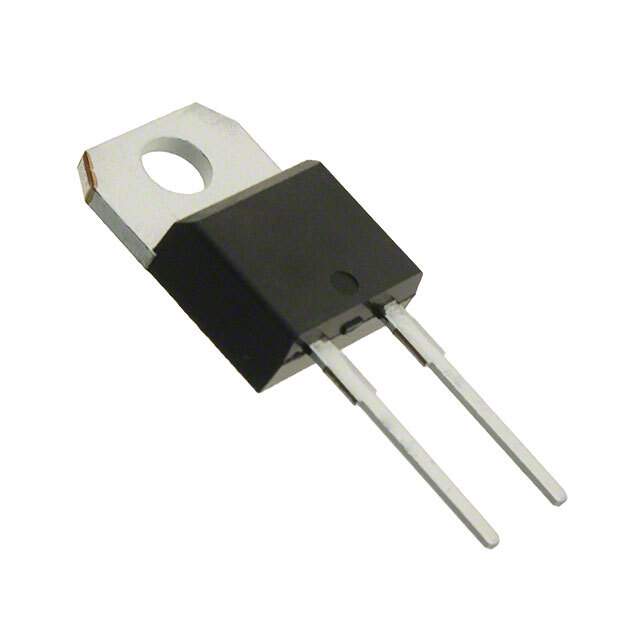

The STTA812DI, part of STMicroelectronics' Turbo 2 series, is an ultrafast high voltage rectifier designed for applications requiring efficient and reliable high voltage switching. This rectifier is optimized for use in high-frequency circuits, making it an ideal choice for power supplies, lighting systems, and high-speed switch mode applications.

Key Features

  • Voltage Rating: The STTA812DI is engineered to handle a repetitive reverse voltage (V<sub>RRM) of up to 1200V, providing ample headroom for high voltage applications.
  • Current Capacity: With an average forward current (I<sub>F(AV)) of 8A, this device can comfortably manage significant power levels in a variety of circuits.
  • Ultrafast Recovery Time: The ultrafast recovery time of less than 35ns minimizes power losses and improves efficiency, which is crucial in high-frequency power switching.
  • Low Forward Voltage Drop: A low forward voltage drop (V<sub>F) reduces conduction losses and helps in maintaining overall system efficiency.
  • High Thermal Performance: Thanks to its insulated package, the STTA812DI offers excellent thermal performance and a high junction temperature capability (T<sub>J max of 175°C).
  • Robust Design: The device is designed to be rugged and reliable, with capabilities to handle surge currents and challenging environmental conditions.

Applications

The STTA812DI is well-suited for a wide range of applications, particularly where high efficiency and fast switching are required:

  • Switch Mode Power Supplies (SMPS)
  • Free-Wheeling Diodes in Converters
  • Snubber Diodes
  • Power Factor Correction (PFC) circuits
  • High-frequency Inverters
  • Lighting Systems

Package and Quality

The STTA812DI comes in an insulated TO-220 package, which not only aids in thermal management but also provides electrical isolation from the heatsink. The device meets the stringent quality standards set by STMicroelectronics, ensuring reliability and performance consistency in demanding environments.

With its combination of high voltage capacity, fast switching speed, and robust design, the STTA812DI is an excellent choice for designers looking to enhance the performance and efficiency of their high voltage power conversion systems.
