Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1000V (1kV)
Current - Average Rectified (Io) 30A
Voltage - Forward (Vf) (Max) @ If 2V @ 30A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 100ns
Current - Reverse Leakage @ Vr 15μA @ 1000V
Mounting Through Hole
Case / Package DOP3I
Operating Temperature - Junction 175°C (Max)
Win Source Part Number 212409-STTH3010PI
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian STTH3010PI CAD Model

Description

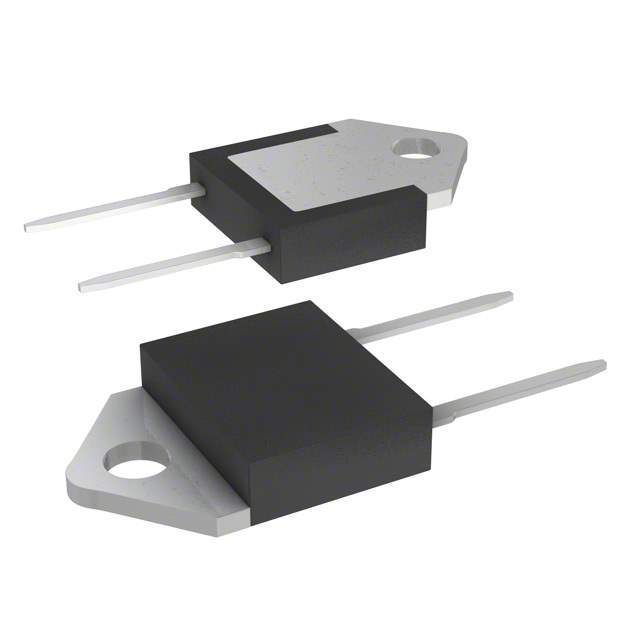

STTH3010PI - Ultrafast Recovery Diode

The STTH3010PI, designed and manufactured by STMicroelectronics, is an ultrafast recovery diode that is highly esteemed for its exceptional performance in high-frequency power switching applications. This diode is specifically engineered to cater to the demands of modern-day power supply designs, offering both high reliability and efficiency.

Key Features

  • Voltage Rating: The diode boasts a repetitive peak reverse voltage (V<sub>RRM) of 1000V, making it suitable for high-voltage applications.
  • Current Capacity: With an average forward current (I<sub>F(AV)) of 30A, the STTH3010PI can handle significant current, ensuring robust performance in power conversion systems.
  • Speed: The ultrafast recovery time, typically less than 40ns, minimizes energy loss and improves the efficiency of the application in which it is used.
  • Low Forward Voltage Drop: The low forward voltage drop (V<sub>F) helps to reduce power dissipation and enhance overall efficiency.
  • High Surge Capacity: The diode is capable of withstanding high surge currents, which is critical for protecting circuits against unexpected overloads.

Applications

The STTH3010PI is ideally suited for a variety of applications where speed and power efficiency are crucial. These include:

  • Switch-mode power supplies (SMPS)
  • Power factor correction circuits (PFC)
  • Snubber and freewheeling diodes
  • High-frequency inverters
  • Welding and battery charging equipment

Package and Quality

The diode is encapsulated in an ISOTOP package, known for its high thermal performance and durability. This package ensures that the device can withstand challenging thermal and mechanical conditions. The STTH3010PI meets the rigorous standards set by STMicroelectronics, ensuring high quality and reliability for critical industrial and commercial applications.

With its combination of high-speed switching, robust power handling, and efficiency, the STTH3010PI is an excellent choice for engineers looking to improve the performance and reliability of their power management systems.
