Products specifications

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 30A
Voltage - Forward (Vf) (Max) @ If 1.55V @ 30A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 90ns
Current - Reverse Leakage @ Vr 25μA @ 600V
Mounting Through Hole

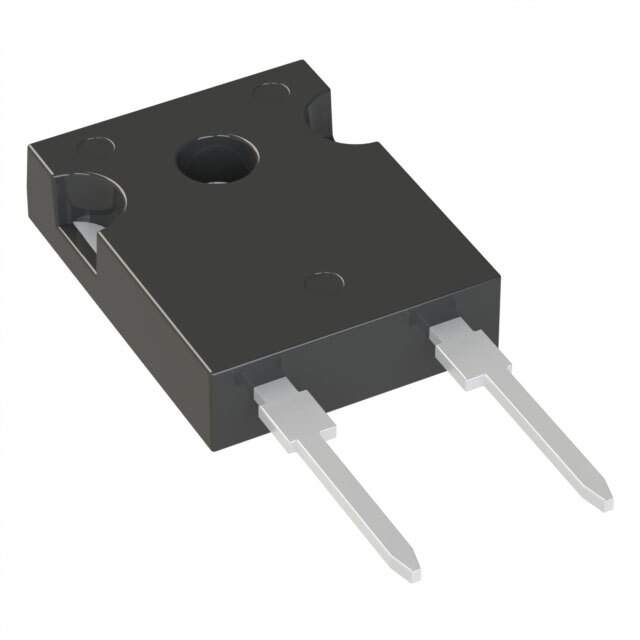

Case / Package DO-247
Operating Temperature - Junction -40°C to 175°C
Win Source Part Number 038218-STTH30L06W
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian STTH30L06W CAD Model

Description

The STTH30L06W, manufactured by STMicroelectronics, is a state-of-the-art ultrafast recovery diode designed to meet the stringent requirements of high-efficiency power supply systems. This diode is a key component for applications requiring low forward voltage drop, high surge current capability, and ultrafast switching performance.

Key Features

  • High Junction Temperature: With a maximum operating junction temperature of 175°C, the STTH30L06W is suitable for high-temperature environments, ensuring reliability and performance under thermal stress.
  • Low Forward Voltage Drop (Vf): The diode's low Vf reduces power losses and improves efficiency, which is critical for energy-sensitive applications.
  • Ultrafast Reverse Recovery Time (trr): The device boasts an impressive reverse recovery time, making it ideal for high-frequency operations and reducing switching losses.
  • High Surge Current Capability: It can handle high surge currents without failure, providing robust performance during transient conditions.
  • Insulated Package: The diode comes in an insulated package that provides electrical isolation rated at 2500V RMS. This feature simplifies design and enhances safety.

Applications

The STTH30L06W is well-suited for a variety of applications, including:

  • Switch-mode power supplies (SMPS)
  • Power factor correction (PFC) circuits
  • Freewheeling diodes in converters and motor control circuits
  • Snubber diode
  • Automotive environment (AEC-Q101 qualified)

Product Specifications

Parameter Value Repetitive Peak Reverse Voltage (VRRM) 600V Average Forward Current (IF(AV)) 30A Non-Repetitive Peak Forward Surge Current (IFSM) 300A Operating Junction Temperature (Tj) -40°C to +175°C Package TO-247

Overall, the STTH30L06W ultrafast recovery diode from STMicroelectronics is an excellent choice for designers looking to enhance the efficiency and reliability of their power management systems.
