Products specifications Report Issue?

Manufacturer STMicroelectronics
No 102231
Standard Package 1
Category Sensors Transducers
Family Temperature Sensors Transducers
Packaging Reel
Sensor Type Digital Local
Sensing Temperature - Local -40°C ~ 125°C
Output Type SMBus
Operating Supply Voltage 2.25 V ~ 3.6 V
Resolution 11 b
Features One-Shot Output Switch Programmable Limit Programmable Resolution Standby Mode
Accuracy - Highest (Lowest) ±1.5°C (±2.5°C)
Test Condition 0°C ~ 85°C (-40°C ~ 125°C)
Operating Temperature Range -40°C ~ 125°C

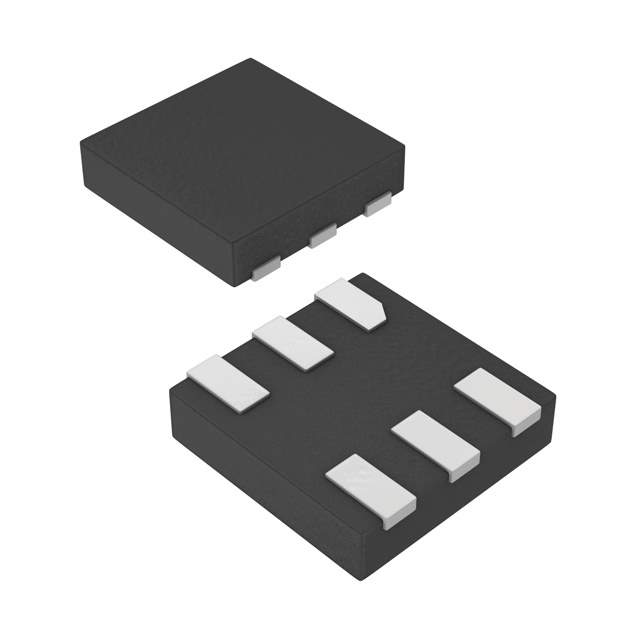

Package 6-UDFN
Manufacturer Device Package 6-UDFN (2x2)
Win Source Part Number 038168-STTS751-1DP3F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian STTS751-1DP3F CAD Model

Description

STTS751-1DP3F - High-Accuracy Digital Temperature Sensor

The STTS751-1DP3F is a precision digital temperature sensor from STMicroelectronics, designed to offer high-accuracy temperature monitoring with a simple I2C interface. This sensor is ideal for a wide range of applications, including personal electronics, industrial systems, and computer peripherals, where precise temperature control and monitoring are crucial for performance and reliability.

Key Features

  • Temperature Accuracy: The STTS751-1DP3F boasts an impressive accuracy of ±0.5°C from -10°C to 125°C, ensuring precise temperature readings for critical applications.
  • Programmable Resolution: Users can configure the resolution from 9 to 12 bits, allowing for a balance between measurement precision and conversion time.
  • Low Operating Voltage: With an operating voltage range of 2.25V to 3.6V, this sensor is suitable for battery-powered and low-voltage applications.
  • Alert Functions: The device features programmable overtemperature and undertemperature alert outputs, providing real-time notifications for temperature excursions.

Advanced Capabilities

The STTS751-1DP3F is equipped with an SMBus-compatible I2C interface, allowing for easy integration into existing systems and bus architectures. The sensor's One-Shot mode enables power saving by taking temperature measurements only upon request, making it ideal for applications with sporadic temperature monitoring needs.

Robust and Versatile

This sensor comes in a small 8-pin TDFN package, offering a compact solution for space-constrained designs. Its wide operating temperature range of -40°C to +125°C makes it robust enough for harsh environments. Additionally, the STTS751-1DP3F features a shutdown mode for reduced power consumption when the sensor is not in use, further extending the battery life of portable applications.

Easy to Use

With its user-friendly features and extensive documentation, the STTS751-1DP3F simplifies the implementation of temperature monitoring in a variety of systems. STMicroelectronics provides comprehensive support, including datasheets, application notes, and technical guidance to facilitate a seamless integration process.
