The TDA7563BH is a cutting-edge audio amplifier from STMicroelectronics, designed to deliver high-quality sound with maximum efficiency. As part of STMicroelectronics' reputable line of audio products, this multifunctional quad-bridge car radio amplifier integrates a plethora of features to enhance audio performance for automotive applications.

Key Features

• High Output Power Capability: The TDA7563BH is capable of delivering 4 x 50W/4Ω max. and 4 x 30W/4Ω @ 14.4V, 1kHz, 10% THD, ensuring powerful and clear audio output suitable for in-car entertainment systems.

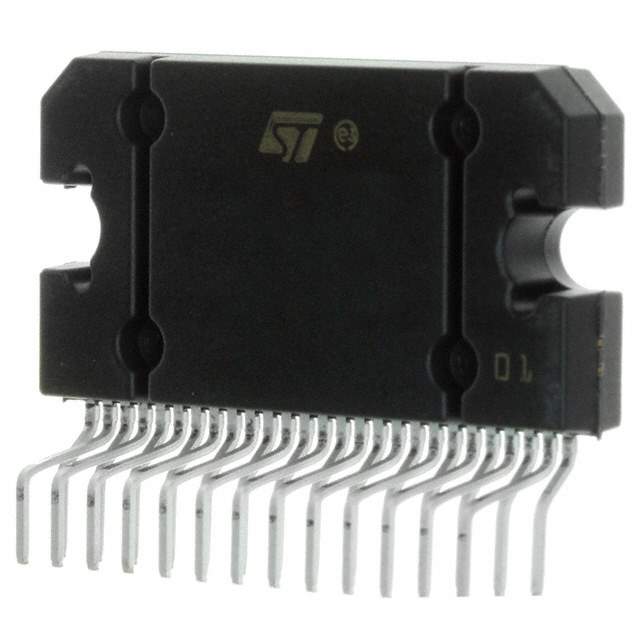

• Flexiwatt25 Package: Enclosed in a Flexiwatt25 package, the amplifier is engineered for optimal thermal performance and space-saving on the PCB.
• Advanced Diagnostics: It includes a diagnostic system that can detect and report faults such as short circuits to GND, to Vcc, across the load, and thermal overheating, ensuring the safety and longevity of the device.
• Clip Detection: The TDA7563BH features a clip detection mechanism that helps to prevent distortion by monitoring output signal levels.
• Standby and Mute Functions: These functions allow for a reduction in power consumption when the amplifier is not in active use, contributing to energy efficiency.
• Low External Component Count: The need for external components is minimized, simplifying the design and reducing overall system costs.

Applications

This versatile audio amplifier is primarily used in automotive audio applications. It is suitable for car radio and multimedia systems, providing a high-quality audio experience for drivers and passengers alike.

Performance and Reliability

The TDA7563BH is designed to operate over a wide supply voltage range (from 6V to 18V), making it resilient to fluctuations commonly found in automotive power supplies. Its built-in mute and standby functions ensure silent turn-on and turn-off transitions, avoiding unwanted noises that can detract from the user experience. With its advanced built-in diagnostics, the TDA7563BH not only protects itself but also can contribute to the overall safety and reliability of the audio system in which it is implemented.
