Products specifications

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Bulk
Reference Type Shunt
Output Type Adjustable
Min/Fixed Output Voltage 1.24V
Maximum Output Voltage 6V
Output Current 30mA
Tolerance ±1%
Temperature Coefficient 100ppm/°C
Current - Cathode 60μA
Temperature Range - Operating -40°C ~ 125°C
Mounting Style Through Hole

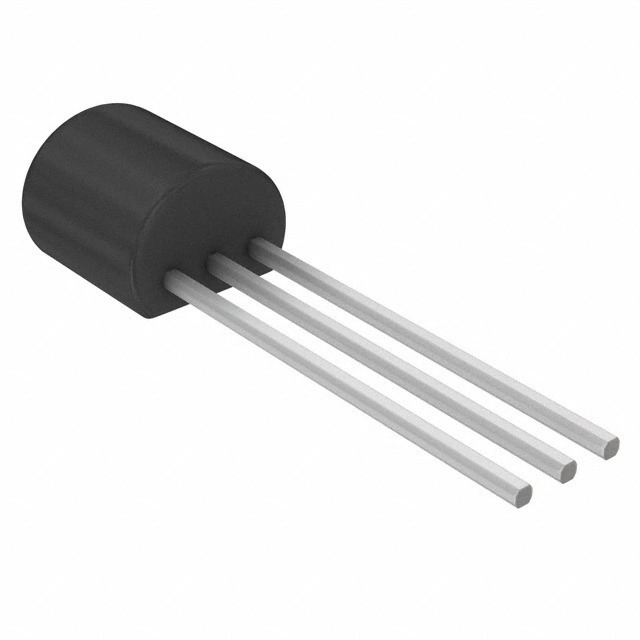

Manufacturer Package TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package TO-92-3
Family Part Number TS431
Manufacturer Pack Quantity 5,000
MSL Level 1 (Unlimited)
Win Source Part Number 1274360-TS431AIZ
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TS431AIZ CAD Model

Description

The TS431AIZ from STMicroelectronics is a versatile and adjustable precision shunt regulator designed to cater to a wide range of voltage regulation requirements. This component is a three-terminal adjustable shunt regulator with guaranteed temperature stability over the entire temperature range of operation. The output voltage can be set to any value between Vref (approximately 2.5V) and 36V with two external resistors.

Key Features

  • Adjustable Output Voltage: The TS431AIZ offers an adjustable voltage range from 2.5V to 36V, providing flexibility for various applications.
  • High Precision: It features a typical output impedance of 0.2 ohms, ensuring that the output remains stable even with load variations.
  • Low Operational Current: The regulator operates with a low quiescent current, which enhances its efficiency and makes it suitable for low-power applications.
  • Temperature Stability: Its temperature-compensated reference voltage ensures reliable performance across a wide temperature range from -40°C to +125°C.
  • Surface-Mount Package: The device comes in a standard TO-92 package, which is suitable for automated assembly processes and compact circuit designs.

Applications

The TS431AIZ is suitable for a broad spectrum of applications, including:

  • Power supplies
  • Battery chargers
  • Voltage monitoring
  • Adjustable voltage references
  • Switching power supplies

Product Specifications

Parameter Value Reference Voltage 2.5V (typical) Output Voltage Range 2.5V to 36V Temperature Range -40°C to +125°C Package Type TO-92

The TS431AIZ shunt regulator from STMicroelectronics is an ideal solution for designers looking for a reliable and flexible voltage reference that can be fine-tuned to their specific needs. Its ease of use, coupled with its precision and stability, make it a valuable component in a variety of electronic devices and systems.
