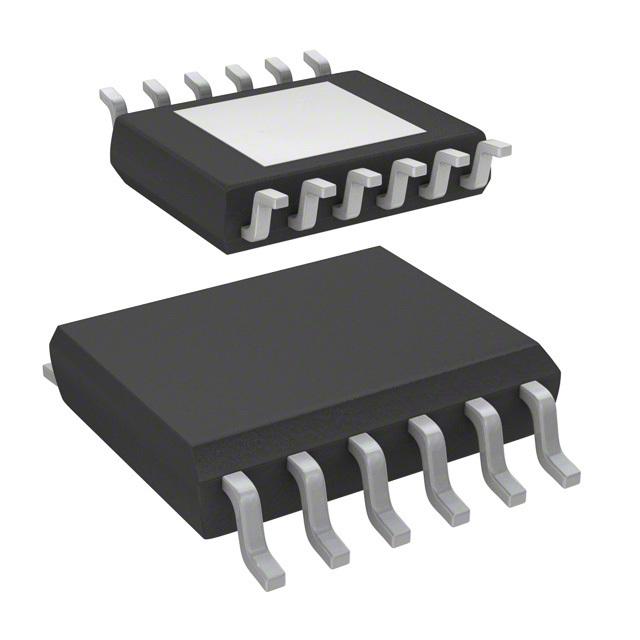

The VN5016AJ-E is a robust high-side driver manufactured by STMicroelectronics, designed to deliver efficient and reliable control for automotive and industrial applications. This advanced power switch is part of ST's VIPower M0-3 family, and it is specifically engineered to handle high-power loads with great precision and energy efficiency.
Key Features
- High-Side Switch: The VN5016AJ-E operates as a high-side switch, which means it connects the load to the power supply from the positive side, ensuring a safe and efficient current flow to the load.
- Current Rating: It is capable of handling a continuous current of up to 16A, making it suitable for a wide range of high-power applications.
- On-State Resistance: The device boasts a low on-state resistance of only 10 mΩ, which minimizes power loss and helps to improve overall system efficiency.
- Protection Features: It includes several built-in protection features such as overtemperature shutdown, load current limitation, and active clamp to safeguard the system against various types of electrical hazards.
- Diagnostic Functions: The VN5016AJ-E provides diagnostic feedback through a status output pin, which can be used to monitor the health and performance of the system.
- Voltage Range: This high-side driver operates within a wide supply voltage range from 5.5V to 36V, accommodating a broad spectrum of automotive and industrial power systems.
Applications
The VN5016AJ-E is particularly well-suited for driving resistive, inductive, and capacitive loads. Its robustness and reliability make it an excellent choice for:
- Automotive applications, such as controlling lights, motors, and heaters
- Industrial automation systems, where precise control of actuators is required
- Smart power distribution systems that demand high reliability and efficiency
With its combination of high performance, protection features, and diagnostic capabilities, the VN5016AJ-E from STMicroelectronics represents a state-of-the-art solution for designers looking to improve the safety, efficiency, and reliability of their high-side power control applications.
