Products specifications

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Tube
Status Obsolete
Switch Type General Purpose
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Load Voltage (V) 5.5V ~ 36V
Supply Voltage Not Required
Current - Output (Maximum) 9A
Rds On 40mOhm (Maximum)
Input Type Non-Inverting
Features Auto Restart, Status Flag
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Temperature Range - Operating -40°C ~ 150°C
Manufacturer Package P2PAK (4 Leads + Tab)
Supplier Device Package P2PAK
Family Part Number VN820
Manufacturer Pack Quantity 50
MSL Level 3 (168 Hours)
Win Source Part Number 1279548-VN820-B5
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VN820-B5 CAD Model

Description

The VN820-B5 is a cutting-edge high-side driver manufactured by STMicroelectronics, designed to cater to the demanding requirements of automotive and industrial applications. This robust device is part of STMicroelectronics' VIPower M0-5 family and is engineered to drive inductive, resistive, or capacitive loads with superior efficiency and reliability.

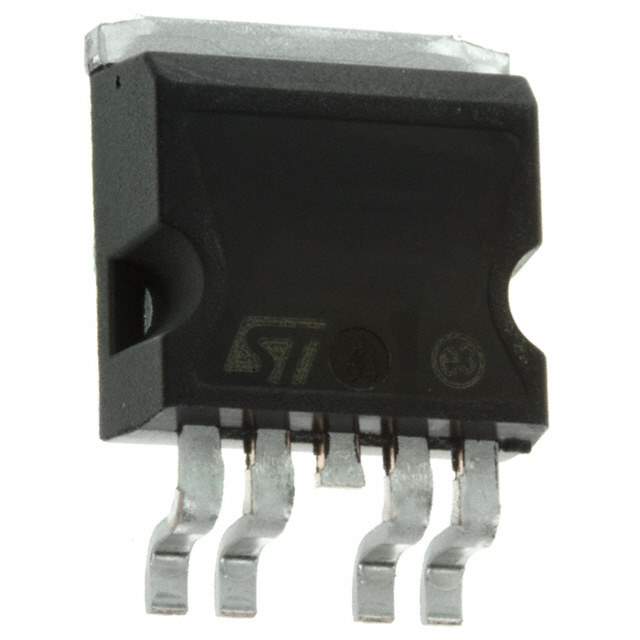

STMicroelectronics VN820-B5 High-Side Driver

Key Features

  • Integrated Smart Power Technology: The VN820-B5 utilizes ST's advanced Smart Power technology, providing efficient and reliable high-side driving capabilities.
  • High Voltage Flexibility: It is capable of operating over a wide supply voltage range, making it suitable for a variety of automotive and industrial voltage standards.
  • Built-in Protection Features: The device includes over-temperature protection, over-current protection, and an active VCC clamp, ensuring the safety and longevity of the system.
  • Diagnostic Functions: With its diagnostic feedback, the VN820-B5 can communicate the status of the driven load to a microcontroller, aiding in fault detection and system management.
  • Compact Package: The VN820-B5 comes in a compact package, saving space on PCBs and reducing overall design footprint.

Applications

The VN820-B5 is ideal for a wide range of applications, including but not limited to:

  • Automotive lighting systems
  • Automotive fan controllers
  • Industrial automation systems
  • Programmable logic controllers (PLCs)

Technical Specifications

Parameter Value Supply Voltage (V<sub>CC) 5.5 to 36 V Output Current (I<sub>OUT) Up to 20 A R<sub>DS(ON) Typically 40 mΩ Package PowerSSO-12

For detailed information and datasheets, visit the STMicroelectronics official website.
