The VND5E004ATR-E is a state-of-the-art automotive-grade double-channel high-side driver manufactured by STMicroelectronics. This robust component is designed to deliver outstanding performance for driving resistive, inductive, and capacitive loads, especially tailored for automotive applications. The VND5E004ATR-E is part of STMicroelectronics' VIPower M0-5 family, known for its advanced Smart Power technology.
Featuring an on-chip microcontroller, this high-side driver provides a wide range of diagnostic and protection features. It is capable of handling load currents up to 4 A with an operating voltage range from 5.5 V to 36 V, making it highly versatile for various automotive environments. The extended voltage range also ensures that the device is protected against load dump surges, enhancing its reliability in the volatile electrical environment of vehicles.
One of the key features of the VND5E004ATR-E is its built-in protection against overtemperature, overload, and short circuits. Additionally, it includes under-voltage shutdown with auto-restart and overvoltage clamp, safeguarding both the driver and the load. The device also provides open-load detection in the off state, output shorted to VCC detection, and is compliant with the ISO 26262 standard, which is a testament to its high safety standards for automotive applications.

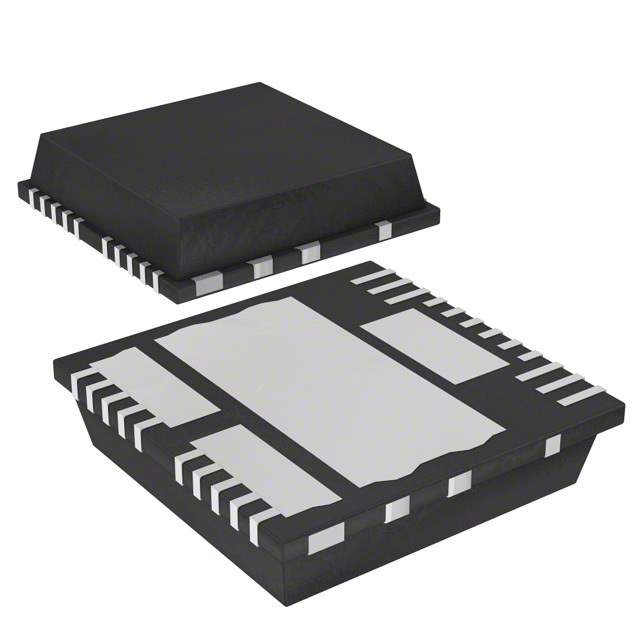

The VND5E004ATR-E comes in a compact PowerSSO-16 package, which is not only space-efficient but also ensures excellent thermal performance. Its lead-free design and compliance with RoHS and ECOPACK specifications make it an environmentally friendly choice for automotive manufacturers looking to meet stringent environmental regulations.
With its multiplexed analog feedback of load current, the VND5E004ATR-E allows for precise monitoring and control, which is critical in advanced automotive systems. Whether it's for body control modules, automotive lighting, or other sophisticated applications, the VND5E004ATR-E is engineered to meet the rigorous demands of the modern automotive industry.
Overall, the VND5E004ATR-E from STMicroelectronics is a high-performance, reliable, and safe solution for automotive high-side driving needs, ensuring seamless operation and longevity in a wide array of vehicular applications.
