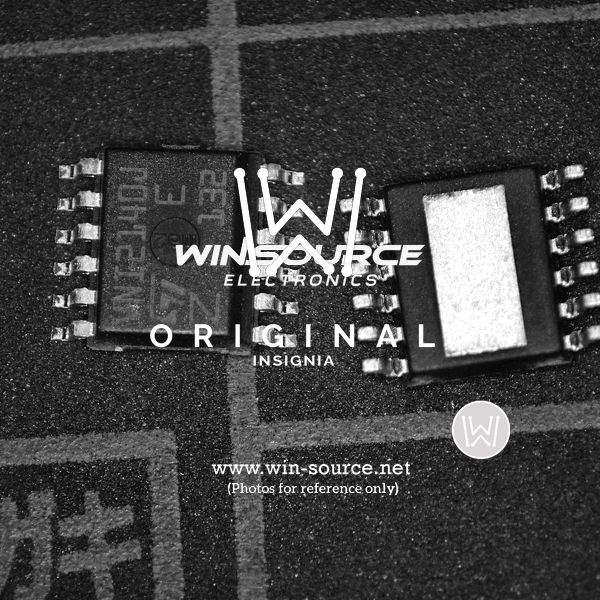

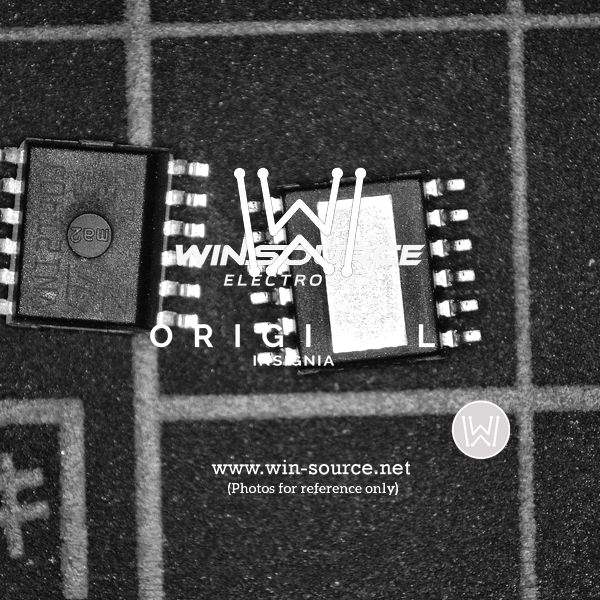

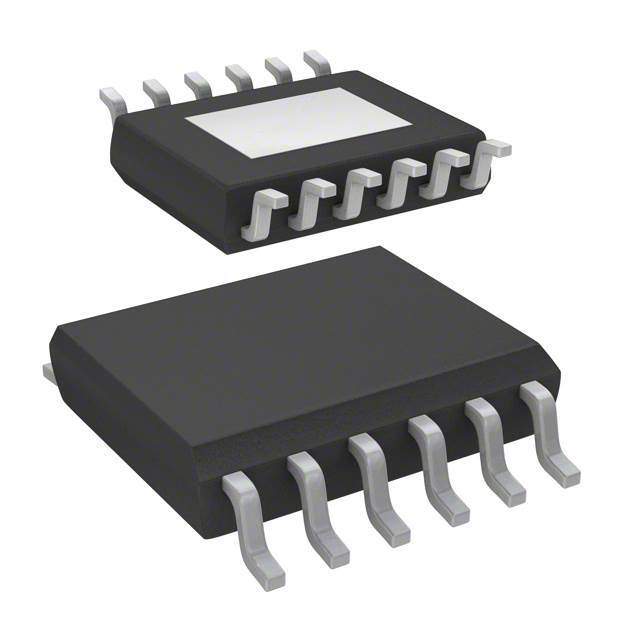

The VNI2140J from STMicroelectronics is a robust and reliable smart power solid-state relay designed to deliver high performance for a wide range of industrial, automotive, and domestic applications. This advanced component is part of STMicroelectronics' VIPower™ M0-7 series and is engineered to provide efficient control of high-current loads.

Key Features

• High-Side Switch: The VNI2140J operates as a double channel high-side driver, allowing it to efficiently control power to the load from the supply side.
• Current Rating: Each channel is capable of handling continuous current up to 5A, making it suitable for driving moderate to high-power loads.
• On-State Resistance: The device features a low on-state resistance (R<sub>DS(on)) that minimizes power dissipation and improves efficiency.
• Integrated Protection: It incorporates over-temperature protection, under-voltage shutdown, and over-current protection to ensure the longevity and safety of both the device and the application it is used in.
• Diagnostic Functions: The VNI2140J is equipped with diagnostic feedback that reports the status of each channel through a serial data output.
• Voltage Range: It is designed to operate within a voltage range of 10.5V to 28V, accommodating a variety of supply voltages in different environments.

Applications

The versatility of the VNI2140J allows it to be used in a multitude of applications. These include, but are not limited to:

• Automotive applications such as controlling lights, motors, and other accessories
• Industrial automation for controlling actuators, sensors, and other high-current devices
• Home automation systems, including smart home devices and appliance controls

Quality and Reliability

STMicroelectronics is committed to delivering high-quality products. The VNI2140J is built to meet stringent industry standards, ensuring reliability and performance in even the most demanding conditions. Its robust construction and integrated protections make it a preferred choice for designers looking for a durable and efficient solid-state relay solution.
