Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Active
Triac Type Logic - Sensitive Gate
Voltage - Off State 600V
Current - On State (It (RMS)) (Max) 4A
Voltage - Gate Trigger (Vgt) (Max) 1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm) 20A, 21A
Current - Gate Trigger (Igt) (Max) 5mA
Current - Hold (Ih) (Max) 5mA
Configuration Single
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting Through Hole

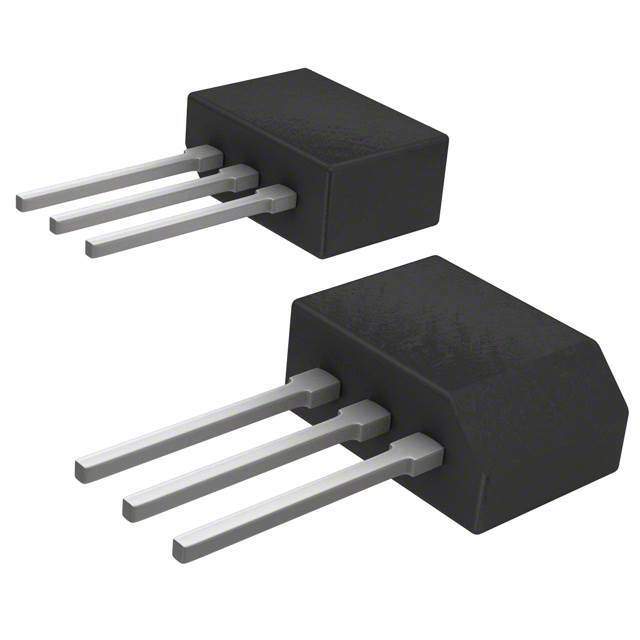

Case / Package TO-202-3
Win Source Part Number 125433-Z0405MF0AA2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian Z0405MF0AA2 CAD Model

Description

The STMicroelectronics Z0405MF0AA2 is a high-performance triac designed for AC power control applications. This semiconductor device is capable of switching and controlling high-current loads efficiently, making it a suitable choice for a wide range of applications in the industrial, consumer, and home appliance markets.

Key Features

  • Voltage Capability: The Z0405MF0AA2 can handle voltages up to 600V, providing a robust solution for mains voltage operations.
  • Current Rating: With a current rating of 4A, this triac can control moderate to high-power circuits, making it versatile for various applications.
  • Gate Trigger Voltage: A low gate trigger voltage ensures that the device can be easily driven by microcontrollers and other logic-level devices.
  • Gate Trigger Current: The device requires a minimal gate trigger current, which enhances its compatibility with digital control circuits.
  • Package: The Z0405MF0AA2 comes in a TO-202 package, which is widely used and easy to mount on various types of PCBs.

Applications

The Z0405MF0AA2 triac is ideal for applications that require efficient control of AC power. Its typical applications include:

  • Lighting control systems
  • Motor control for small home appliances
  • Heating control in environmental and temperature regulation systems
  • Speed control for fans and other small motors
  • AC phase control circuits

Reliability and Performance

STMicroelectronics is known for its commitment to reliability and performance. The Z0405MF0AA2 is no exception, offering consistent performance and a long operational life, which is critical for applications that demand high reliability. Its robust design ensures that it can withstand transient over-voltage events and operate under harsh conditions.

Conclusion

The Z0405MF0AA2 from STMicroelectronics is a versatile and reliable triac, suitable for a variety of AC power control applications. Its combination of high voltage and current capabilities, low gate trigger levels, and a convenient package make it an excellent choice for designers looking to integrate efficient power control into their systems.
