Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - TRIACs
Mfr STMicroelectronics
Package Bulk
Product Status Active
Triac Type Standard
Voltage - Off State 800 V
Current - On State (It (RMS)) (Max) 25 A
Voltage - Gate Trigger (Vgt) (Max) 1.3 V
Current - Non Rep. Surge 50, 60Hz (Itsm) 250A, 260A
Current - Gate Trigger (Igt) (Max) 50 mA
Current - Hold (Ih) (Max) 80 mA
Configuration Single
Mounting Type Chassis Mount

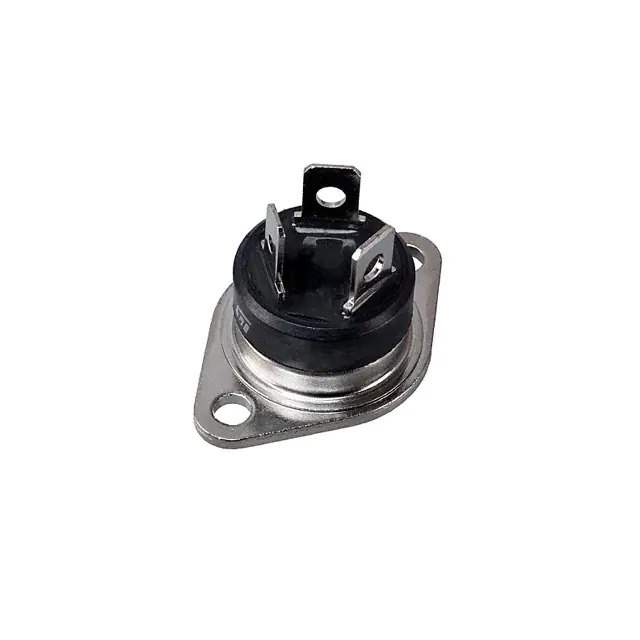

Package / Case RD91-3 (Insulated)
Supplier Device Package RD91
Base Product Number BTA25
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 572643-BTA25-800B
Ultra Librarian 3D Model Ultra Librarian BTA25-800B CAD Model

Description

The BTA25-800B is a high-performance triac manufactured by STMicroelectronics, a global semiconductor leader known for its innovative and reliable products. This triac is designed to control AC power in a variety of applications, providing efficient and effective solutions for AC switching and phase control operations.

Key Features

  • High Blocking Voltage: With a maximum operating voltage of 800V, the BTA25-800B can handle high peak voltages, making it suitable for a wide range of industrial applications.
  • High Current Rating: This triac can sustain a maximum current of 25A, ensuring it can control high current loads with ease.
  • Gate Trigger Voltage: The device features a specified gate trigger voltage (Vgt) that ensures reliable triggering and enhances performance.
  • Thermal Resistance: The BTA25-800B has a low thermal resistance, which helps in maintaining a lower operating temperature and contributes to a longer life expectancy.
  • Insulated Package: Available in an insulated package, the triac offers improved safety and simplifies the design by eliminating the need for insulating hardware.

Applications

The BTA25-800B is versatile and can be utilized in various applications that require high power and reliability. Common applications include:

  • Motor control circuits
  • Lighting dimmer systems
  • Heating regulation systems
  • Static relays
  • AC power control for industrial machines

Quality and Reliability

STMicroelectronics is committed to delivering high-quality products. The BTA25-800B triac is no exception, built to meet stringent quality standards. It offers robust performance and reliability, ensuring long-term stability in a variety of challenging environments.

Conclusion

The BTA25-800B from STMicroelectronics is an excellent choice for designers looking for a robust, high-voltage, and high-current triac. Its combination of features and reliability make it a go-to component for efficient AC power control in industrial and consumer applications.
