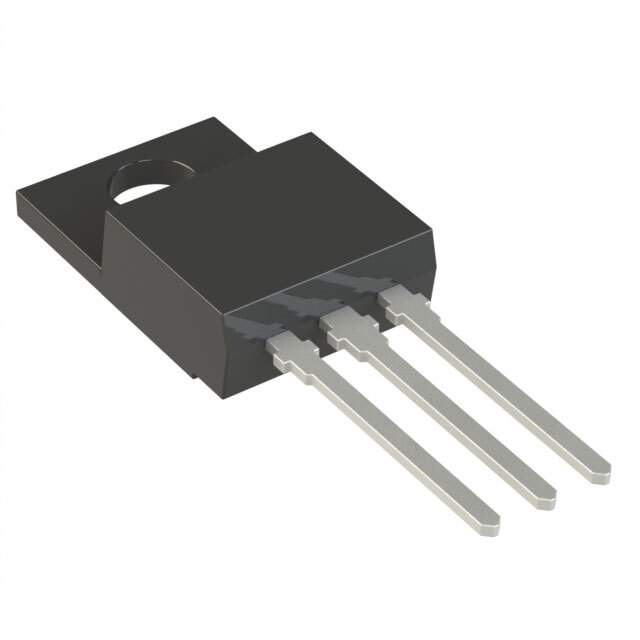

The BT234X-600E is a planar passivated sensitive gate four quadrant triac intended for use in general purpose applications where high sensitivity is required in all four quadrants. This triac is designed for direct interfacing to logic level circuits and low power gate drivers. The 'X' designation often signifies enhanced performance or specific parameter selection.

Applications:

• General purpose AC switching
• Phase control applications
• Static switching relays
• Direct logic level interface circuits
• Lighting controls and dimmers

Features:

• Sensitive gate triggering in all four quadrants
• Planar passivated for voltage ruggedness and long-term reliability
• Direct interfacing to microcontrollers and logic-level ICs
• High blocking voltage capability (600V)
• High holding current to prevent false triggering

Benefits:

• Simplified control circuitry
• Reduced bill of materials (BOM) cost
• Increased system reliability and lifespan
• Improved energy efficiency

Additional Details:

The BT234X-600E features a repetitive peak off-state voltage of 600 V, making it suitable for 230V AC line applications. It is available in a SOT82 package (TO-220AB). The gate trigger current is typically less than 5mA, facilitating easy triggering from logic-level circuits. The device features a high surge current capability, ensuring robust performance under demanding load conditions. The holding current is typically around 6mA. It operates across a temperature range of -40°C to +125°C. This triac is designed to provide reliable and efficient AC power control in various applications.
