Same model may have multiple batches, images only for reference.

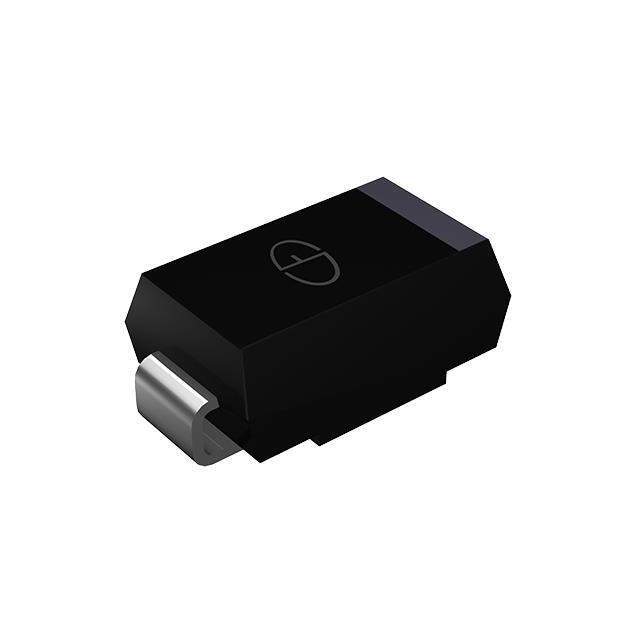

SL110A Real Image
Same model may have multiple batches, images only for reference.

SL110A

Part No SL110A
Manufacturer Surge Components
Catalog Diodes, Rectifiers - Single
Description 1A -100V - SMA (DO-214AC) - RECT  /  Diode Schottky 100 V 1A Surface Mount DO-214AC (SMA)
Datasheet
SL110A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr SURGE
Package Bag
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 680 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 200 µA @ 100 V
Capacitance @ Vr, F 85pF @ 4V, 1MHz
Mounting SMD (SMT)
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (SMA)
Operating Temperature - Junction -55°C ~ 150°C
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN 3A001
HTSUS 8541.10.0080
Other Names 2616-SL110A
Standard Package 1
Win Source Part Number 1132147-SL110A
Ultra Librarian 3D Model Ultra Librarian SL110A CAD Model

Description

The SURGE 1132147-SL110A is a Schottky diode that is designed for rectifier applications.

  • Temperature Range: -55°C to 150°C
  • Voltage Rating: 100 V
  • Current Rating: 1A
