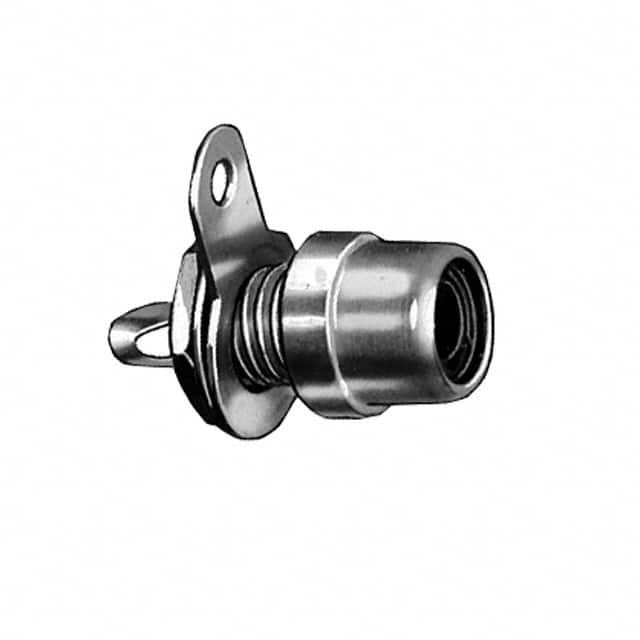

Same model may have multiple batches, images only for reference.
3501FP
Same model may have multiple batches, images only for reference.

3501FP

Part No 3501FP
Manufacturer Switchcraft Inc.
Catalog Barrel - Audio Connectors
Description CONN RCA JACK MONO 3.2MM PNL MT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Barrel Connectors - Audio Connectors
Mfr Switchcraft Inc.
Package Bulk
Product Status Obsolete
Connector Type Phono (RCA) Jack
Gender Female
Signal Lines Mono
Industry Recognized Mating Diameter 3.20mm ID, 9.00mm OD (RCA)
Number of Positions/Contacts 2 Conductors, 2 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Type Panel Mount
Termination Solder Eyelet(s)
Shielding Unshielded
Features Grounding Tab, Mounting Hardware
Insulation Color Black
Contact Material - Plating Nickel
Body Material Brass
Body Color Silver
Includes 3 pcs - 1 Connector, 1 Nut, 1 Washer
Contact Material Brass
Panel Hole Size 0.281" (7.14mm)
Thread Size 1/4"-32
Standard Package 500 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4030
Win Source Part Number 933106-3501FP
Ultra Librarian 3D Model Ultra Librarian 3501FP CAD Model

Description

The 933106-3501FP is a phono (RCA) jack connector with a grounding tab and mounting hardware.

  • Manufacturer: Switchcraft Inc.
  • Connector Type: Phono (RCA) Jack
  • Gender: Female
  • Termination: Solder Eyelet(s)
  • Packaging: Bulk
  • Shielding: Unshielded
  • Contact Material: Brass with Nickel Plating
  • Panel Hole Size: 0.281 inches (7.14mm)
  • Mating Diameter: 3.20mm ID, 9.00mm OD
  • Mounting: Panel Mountable
  • Thread Size: 1/4-32
  • Status: Obsolete
