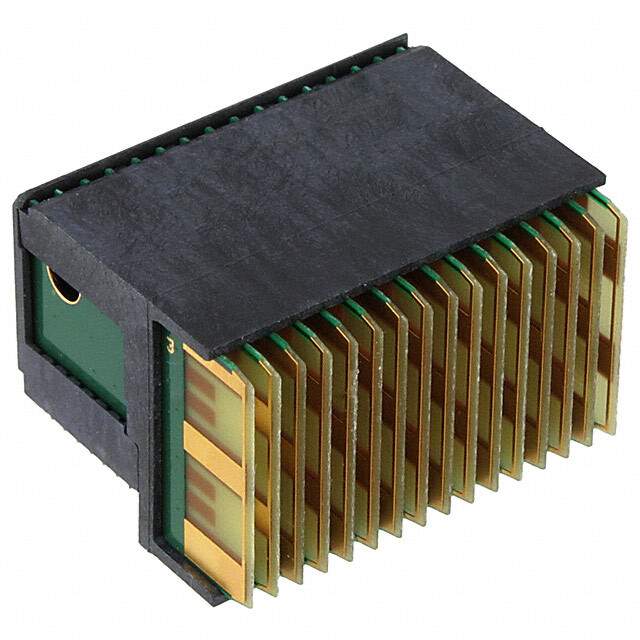

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube/Rail
Status Active
Connector Usage Daughtercard
Connector Type Plug, Male Blades
Connector Style VITA 46, Center
Number of Positions 112
Number of Positions Loaded All
Pitch 0.071" (1.80mm)
Number of Rows 7
Number of Columns 16
Mounting Board Edge, Through Hole, Right Angle
Termination Solder
Contact Layout, Typical 32 Signal Pairs, 8 Single Signal, 40 Ground
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 50μin (1.27μm)
Color Black
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C to 105°C
Win Source Part Number 197290-1410187-3
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Defence, Military & Aerospace, Computers & Computer Peripherals
Ultra Librarian 3D Model Ultra Librarian 1410187-3 CAD Model

Description

1410187-3 High-Performance Component

The 1410187-3 is expertly engineered for a wide range of electronic applications, offering unmatched durability and efficiency. This component is ideal for enhancing the performance of technical projects.

  • Features and Benefits:
    • Exceptional durability in demanding environments
    • Precision engineering for optimal performance
    • Easy to install and integrate
    • Highly efficient with low power consumption
  • Applications:
    • Telecommunication devices
    • Automotive electronics
    • Medical equipment
    • Data processing units
  • Additional Details:
    • Meets rigorous industry standards for safety and quality
    • Designed to provide stable performance consistently
