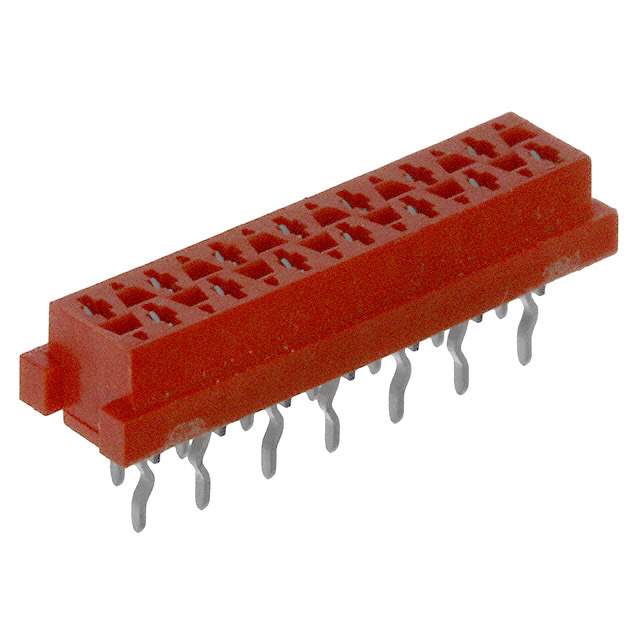

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr TE Connectivity AMP Connectors
Series Micro-MaTch
Package Tape & Reel (TR),Cut Tape (CT)
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 14
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Insulation Color Red
Insulation Height 0.157" (4.00mm)
Contact Length - Post 0.122" (3.10mm)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Voltage Rating 100VDC
Applications Automotive, General Purpose
Insulation Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Material Phosphor Bronze
Base Product Number 215079
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 82150794,A99468TR,A99468CT
Standard Package 250
Win Source Part Number 999947-8-215079-4
Ultra Librarian 3D Model Ultra Librarian 8-215079-4 CAD Model

Description

The 999947-8-215079-4 is a rectangular connector from the Micro-MaTch series.

  • Positions: 14
  • Pitch: 0.100" (2.54mm)
  • Mounting: Through-Hole
  • Termination: Kinked Pin Solder
  • Voltage Rating: 100VDC
  • Series: Micro-MaTch
  • Win Source Part Number: 999947-8-215079-4
