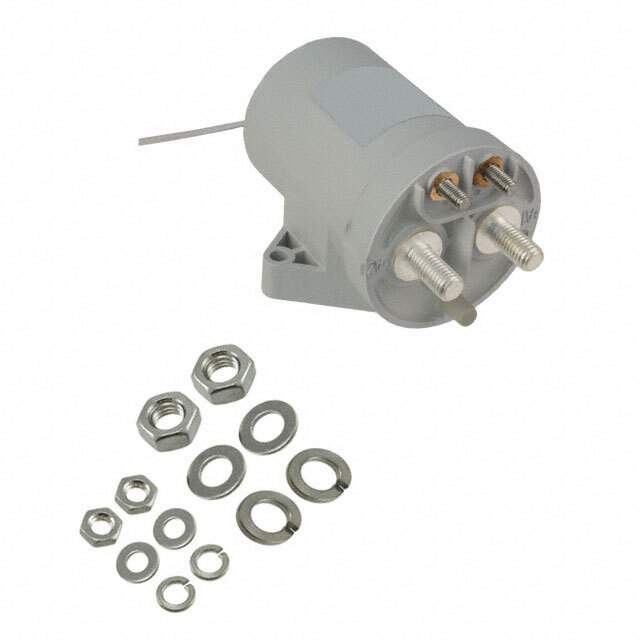

LEV200A4NAF Real Image
Same model may have multiple batches, images only for reference.

LEV200A4NAF

Part No LEV200A4NAF
Manufacturer TE Connectivity
Catalog Contactors (Electromechanical)
Description KILOVAC LEV200 Series Contactor With 1 Form X Contacts Rated 500+ Amps, 12-900Vdc | RELAY CONTACTOR SPST 500A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Aerospace, Defense and Marine
Packaging Bulk
Mounting Style Chassis Mount
Coil Voltage 12VDC
Contact Form SPST-NO (DM) (1 Form X)
Contact Rating (Current) 500A
Switching Voltage 900VDC - Max
Features Sealed - Hermetically
Termination Style Stud
Temperature Range - Operating -40°C ~ 85°C
Must Operate Voltage 9 VDC
Must Release Voltage 2 VDC
Operate Time 25ms
Release Time 12ms
Coil Current 1.1A
Coil Resistance 11Ohms
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1196032-LEV200A4NAF
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management, Safety
Ultra Librarian 3D Model Ultra Librarian LEV200A4NAF CAD Model

Description

The LEV200A4NAF is a relay manufactured by TE Connectivity Aerospace, Defense, and Marine.

  • Mounting Type: chassis mount
  • Packaging: bulk
  • Design: sealed-hermetically
  • Contact Form: SPST-NO (DM) (1 Form X)
  • Coil Voltage: 12VDC
  • Coil Resistance: 11Ohms
  • Coil Current: 1.1A
  • Operate Time: 25ms
  • Release Time: 12ms
  • Must Operate Voltage: 9VDC
  • Must Release Voltage: 2VDC
  • Contact Rating for Current: 500A
  • Switching Voltage: 900VDC - Max
  • Temperature Range: -40°C to 85°C
  • Applications: power management and safety applications
  • Manufacturer Homepage: www.macom.com
  • Popularity: medium
