Products specifications

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series MT, SCHRACK
Package Tray
Product Status Obsolete
Mounting Type Socketable
Coil Voltage 12VDC
Contact Form 3PDT (3 Form C)
Contact Rating (Current) 10 A
Switching Voltage 400VAC - Max
Coil Current 109 mA
Coil Type Non Latching
Features Test Button
Termination Style Plug In, 11 Pin (Octal)
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 110 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Other Names PB865,6-1393091-8
Standard Package 25
Win Source Part Number 1110097-MT321012
Ultra Librarian 3D Model Ultra Librarian MT321012 CAD Model

Description

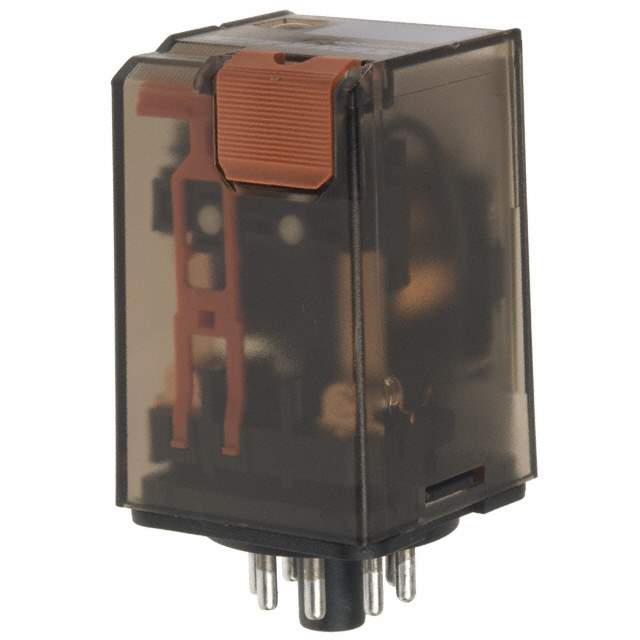

TE Connectivity Potter & Brumfield Relays MT321012 is a power relay with a 3PDT (3 Form C) contact form and a silver nickel (AgNi) contact material.

  • Contact Form: 3PDT (3 Form C)
  • Contact Material: Silver Nickel (AgNi)
  • Coil Voltage: 12VDC
  • Coil Resistance: 110 Ohms
  • Maximum Switching Voltage: 400VAC
  • Contact Rating: 10A
  • Packaging: Tray
  • Mounting Type: Socketable
  • Features: Test Button
  • Release Time: 10ms
  • Popularity: Low
  • Status: Obsolete
  • Alternative Part Number: PB865 or 6-1393091-8
