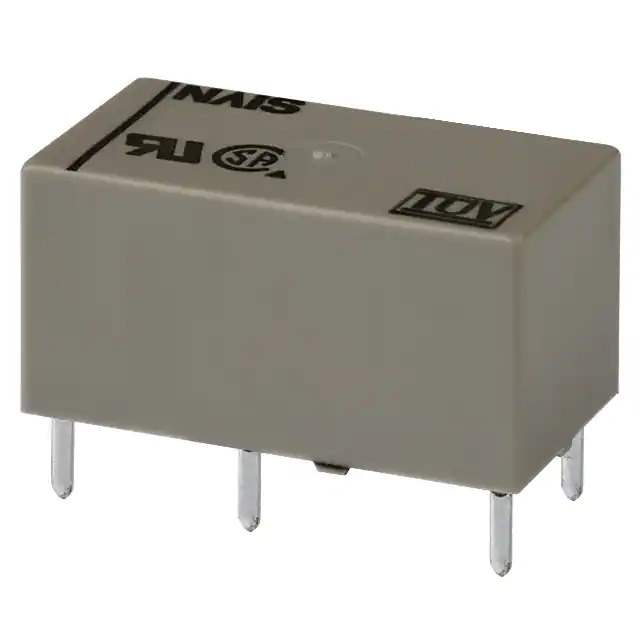

DSP1-DC3V-F Real Image
Same model may have multiple batches, images only for reference.

DSP1-DC3V-F

Part No DSP1-DC3V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 5A 3V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series DSP
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 3VDC
Contact Form DPST-NO/NC (1 Form A, 1 Form B)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 100 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 2.4 VDC
Must Release Voltage 0.3 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 65°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 30 Ohms
Base Product Number DSP1
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 917605-DSP1-DC3V-F
Ultra Librarian 3D Model Ultra Librarian DSP1-DC3V-F CAD Model

Description

The Panasonic DSP1-DC3V-F is a power relay, specifically designed for applications that require switching high currents. It belongs to the power relays category and has a DPST-NO/NC contact form, which means it has one normally open and one normally closed contact.

  • Contact Material: silver tin oxide (AgSnO)
  • Coil Voltage: 3VDC
  • Coil Resistance: 30 Ohms
  • Contact Rating: 5A
  • Switching Voltage: 250VAC or 30VDC
  • Design: sealed and through-hole mounting
