Same model may have multiple batches, images only for reference.

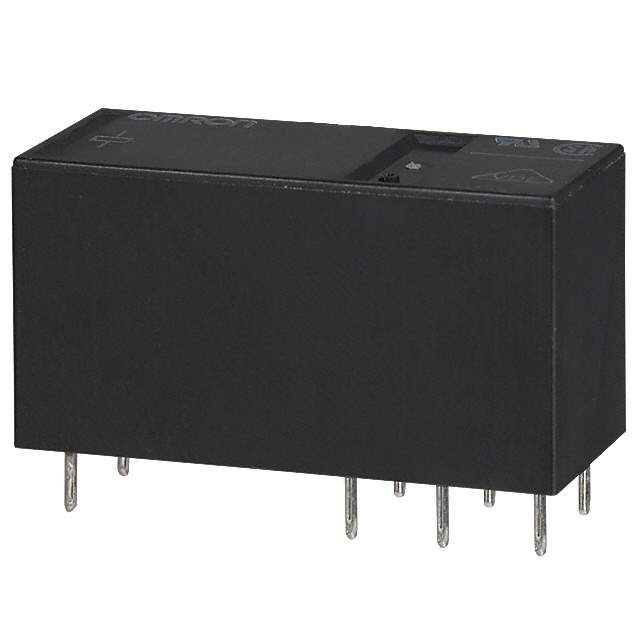

G5RL1EAC230240 Real Image
Same model may have multiple batches, images only for reference.

G5RL1EAC230240

Part No G5RL1EAC230240
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description Relay; Power Pcb; SPDT; High Capacity; Flux Protection; 230/240 VAC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Ambient Temperature Range High 70 °C
Mounting SMD (SMT)
Case / Package DIP
Coil Current 2.88 mA
Coil Power 750 mW
Coil Resistance 47.6 kΩ
Coil Type Non-Latching
Coil Voltage (AC) 240 V
Contact Current Rating 16 A
Contact Material Silver
Current Rating 16 A
Depth 12.7 mm
Height 15.7 mm
Lead Free Yes
Length 29 mm
Maximum Operating Temperature 70 °C
Max Voltage Rating (AC) 250 V
Max Voltage Rating (DC) 24 V
Min Operating Temperature -40 °C
Mount PCB, Through Hole
Number of Contacts 1
Number of Pins 8
Operate Time 15 ms
Packaging Bulk
Power Consumption 750 mW
Radiation Hardening No
Relay Type General Purpose
Release Time 5 ms
RoHS Compliant
Switching Current 16 A
Termination PC Pin
Throw Configuration SPDT
Weight 10 g
Width 12.5 mm
Win Source Part Number 964193-G5RL1EAC230240
Categories Power Relays,Over 2 Amps
Manufacturer Omron
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian G5RL1EAC230240 CAD Model

Description

The Omron G5RL1EAC230240 is a general-purpose non-latching relay with a PC pin termination and a silver contact material.

  • Current Rating: 16 A
  • Coil Resistance: 47.6 kΩ
  • Coil Voltage: 240 V AC
  • Coil Power: 750 mW
  • Maximum Operating Temperature: 70 °C
  • Minimum Operating Temperature: -40 °C
  • Throw Configuration: SPDT
  • Release Time: 5 ms
  • Height: 15.7 mm
  • Width: 12.5 mm
  • Length: 29 mm
  • RoHS Compliant: Yes
  • Application: Power Relay
