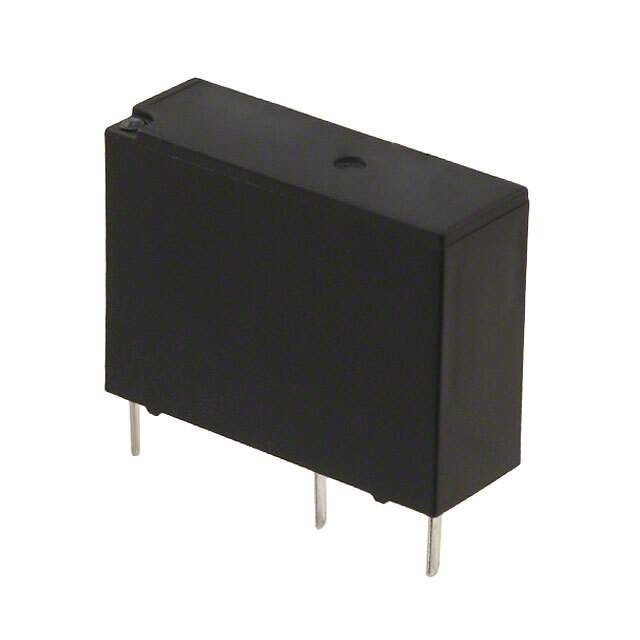

G5NB1AEDC12NA Real Image
Same model may have multiple batches, images only for reference.

G5NB1AEDC12NA

Part No G5NB1AEDC12NA
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description Electromechanical Relay SPST-NO 5A 12VDC 720Ohm Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Coil Current 16.7 mA
Coil Resistance 720 Ω
Coil Voltage (DC) 12 V
Contact Material Silver
Max Current Rating 5 A
Maximum Operating Temperature 70 °C
Max Voltage Rating (AC) 250 V
Max Voltage Rating (DC) 30 V
Min Operating Temperature -40 °C
Mount Through Hole
Radiation Hardening No
RoHS Compliant
Termination PC Pins
Throw Configuration SPST
Win Source Part Number 964033-G5NB1AEDC12NA
Categories Power Relays,Over 2 Amps
Manufacturer Omron
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian G5NB1AEDC12NA CAD Model

Description

The G5NB1AEDC12NA is a power relay manufactured by Omron.

  • Maximum Current Rating: 5A
  • Maximum Voltage Rating: 250V AC and 30V DC
  • Coil Voltage: 12V DC
  • Coil Resistance: 720 Ω
  • Coil Current: 16.7 mA
  • Mounting: Through-hole
  • Termination: PC pins
  • RoHS Compliance: Compliant
  • Maximum Operating Temperature: 70 degrees Celsius
