Same model may have multiple batches, images only for reference.

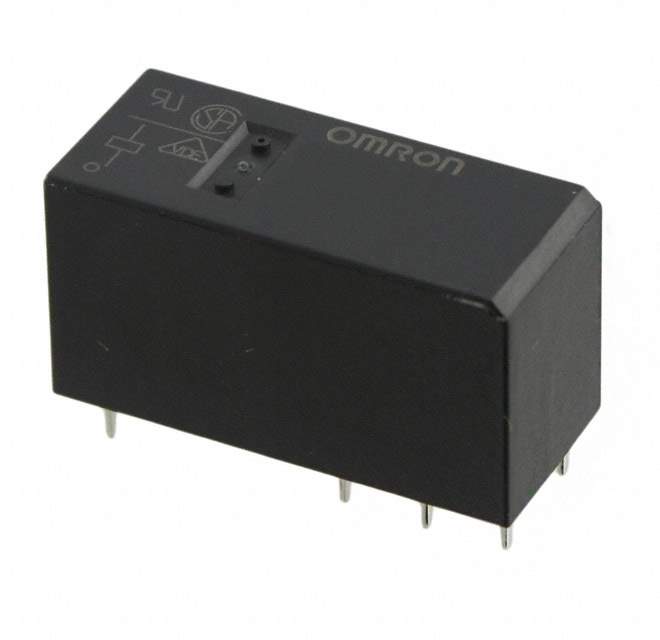

G2RL-1-E-CF-DC24 Real Image
Same model may have multiple batches, images only for reference.

G2RL-1-E-CF-DC24

Part No G2RL-1-E-CF-DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description Electromechanical Relay SPDT 16A 24VDC 1.44KOhm Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Ambient Temperature Range High 85 °C
Mounting SMD (SMT)
Case / Package DIP
Coil Current 16.7 mA
Coil Power 400 mW
Coil Resistance 1.44 kΩ
Coil Type Non-Latching
Coil Voltage (DC) 24 V
Contact Current Rating 16 A
Contact Material Cadmium, Silver, Tin
Contact Resistance 100 mΩ
Current Rating 16.7 mA
Height 15.7 mm
Insulation Resistance 1 GΩ
Lead Free Yes
Length 29 mm
Max Current Rating 16 A
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 440 V
Max Voltage Rating (DC) 300 V
Manufacturer Package Identifier G2RL-1-E-CF-DC24
Min Operating Temperature -40 °C
Mount Through Hole
Number of Contacts 1
Number of Pins 8
Operate Time 15 ms
Power Consumption 400 mW
Power Rating 384 W
Radiation Hardening No
REACH SVHC Unknown
Relay Type General Purpose
Release Time 5 ms
RoHS Compliant
Switching Current 16 A
Termination PC Pin
Throw Configuration SPDT
Weight 12 g
Width 12.7 mm
Win Source Part Number 970839-G2RL-1-E-CF-DC24
Categories Power Relays,Over 2 Amps
Manufacturer Omron
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian G2RL-1-E-CF-DC24 CAD Model

Description

The Omron G2RL-1-E-CF-DC24 power relay is a high-quality non-latching general-purpose relay that offers reliable performance.

  • Coil Voltage: 24 VDC
  • Coil Resistance: 1.44 kΩ
  • Maximum Current Rating: 16 A
  • Maximum Voltage Rating: 440 VAC or 300 VDC
  • Throw Configuration: Single Pole Double Throw (SPDT)
  • Contact Material: Cadmium, Silver, and Tin
  • Contact Current Rating: 16.7 mA
  • Contact Resistance: 100 mΩ
  • Application: Power Relays Over 2 Amps
  • Height: 15.7 mm
  • Width: 12.7 mm
  • Length: 29 mm
  • RoHS Compliant: Yes
  • Lead-Free: Yes
