Products specifications

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 33.3mA
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 8A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 8.4 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 8ms
Release Time 6ms
Features Insulation - Class F, Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 400 mW
Coil Resistance 360 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 027548-RT424012
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Industrial, Power Management, Automation & Process Control, Consumer Electronics
Family Name RT4
Introduction Date October 15, 2009
ECCN EAR99
Country of Origin Austria
Halogen Free Not Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian RT424012 CAD Model

Description

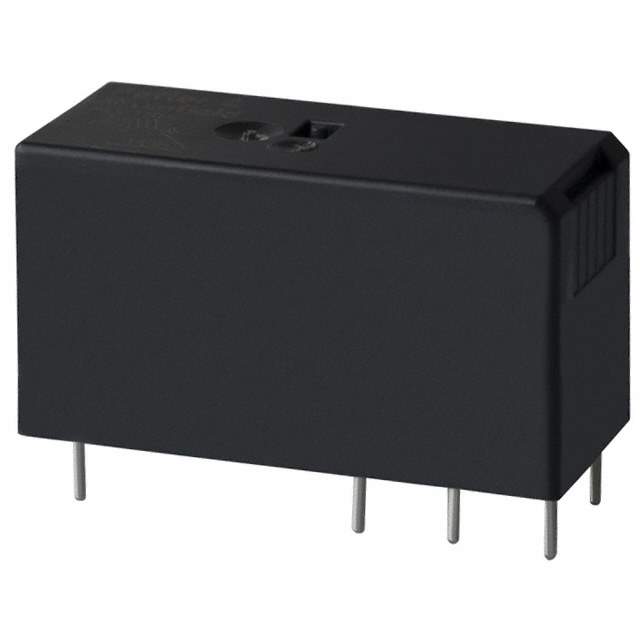

RT424012 from TE Connectivity is a power relay in the over-2-amp class used where reliable switching is needed between low-power control circuitry and higher-load equipment. Parts in this category are commonly selected for industrial controls, building automation, power distribution interfaces, HVAC systems, test equipment, and general-purpose switching in control panels. Engineers often consider TE Connectivity relays for broad ecosystem support, established brand recognition, and suitability for designs that need dependable electromechanical isolation. For procurement and design planning, RT424012 should be evaluated against the latest manufacturer documentation for coil, contact, footprint, and certification details before release to production. The current lifecycle status for this specific part is information not available, so teams should verify supply continuity directly with TE Connectivity or authorized distribution. RoHS compliance status is also information not available from the provided input; engineers should confirm the latest compliance declaration, material content, and any applicable regulatory statements through official manufacturer resources.
