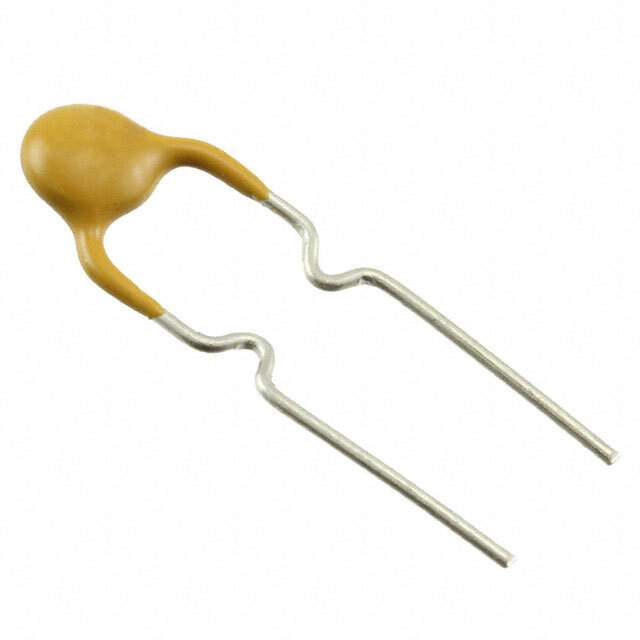

RXEF020-2 Real Image
Same model may have multiple batches, images only for reference.

RXEF020-2

Part No RXEF020-2
Manufacturer TE Connectivity
Catalog PTC Resettable Fuses
Description POLYSWITCH RXE SERIES 0.20A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity
Standard Package 1
Category Circuit Protection
Family PTC Resettable Fuses
Series PolySwitch RXEF
Packaging Reel
Voltage - Max 72V
Current - Max 40A
Current - Hold (Ih) (Max) 200mA
Current - Trip (It) 400mA
R Min/Max 1.830 ~ 4.400 Ohm
Time to Trip 2.2s
Package Radial Disc
Catalog PolySwitch Radial Leaded
Win Source Part Number 046510-RXEF020-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RXEF020-2 CAD Model

Description

The TE Connectivity 046510-RXEF020-2 is a PTC resettable fuse that is part of the PolySwitch RXEF series.

  • Voltage-Max: 72V
  • Current-Max: 40A
  • Current Hold (Ih): 200mA
  • Current Trip (It): 400mA
  • R Min/Max: 1.830 ~ 4.400 Ohm
  • Time to Trip: 2.2s
  • Package: radial disc
  • Standard Package: 1 unit
  • Voltage Switching: medium
  • Supply and Demand Status: balanced
  • Packaging: reel
