Same model may have multiple batches, images only for reference.

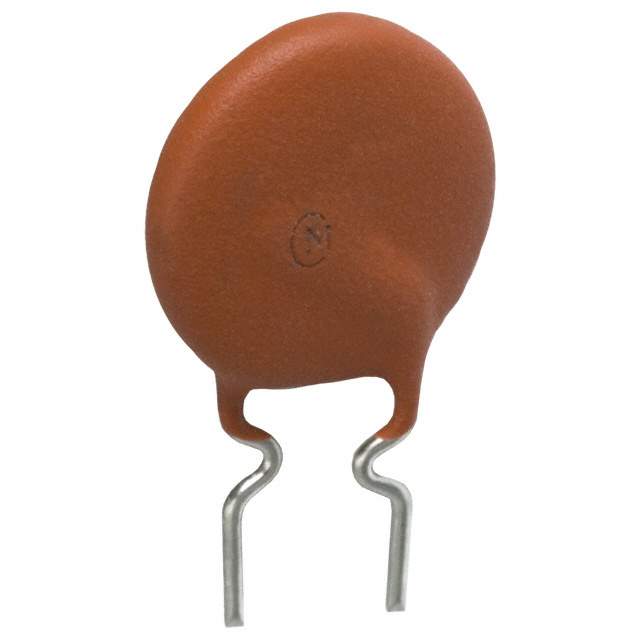

PTGL12AS4R7K6B51B0 Real Image
Same model may have multiple batches, images only for reference.

PTGL12AS4R7K6B51B0

Part No PTGL12AS4R7K6B51B0
Manufacturer Murata Electronics North America
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 140V 393MA RADIAL / Ceramic PTC Resettable Fuse 140V 393 mA Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Murata Electronics
Series POSISTOR®, PTGL
Package Bulk
Product Status Obsolete
Type Ceramic
Voltage - Max 140V
Current - Max 3.5 A
Current - Hold (Ih) (Max) 393 mA
Current - Trip (It) 523 mA
Resistance - 25°C (Typ) 4.7 Ohms
Temperature Range - Operating -30°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.453" Dia x 0.138" T (11.50mm x 3.50mm)
Height - Seated (Max) 0.650" (16.50mm)
Lead Spacing 0.197" (5.00mm)
Approval Agency UL
Base Product Number PTGL12AS
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.40.8070
Other Names 490-3987
Standard Package 300
Win Source Part Number 1112200-PTGL12AS4R7K6B51B0
Ultra Librarian 3D Model Ultra Librarian PTGL12AS4R7K6B51B0 CAD Model

Description

The PTGL12AS4R7K6B51B0 is a PTC resettable fuse designed to protect electronic components from overcurrent and short circuits.

  • Series: POSISTOR®, PTGL
  • Material: Ceramic
  • Maximum Voltage: 140V
  • Maximum Current: 3.5A
  • Maximum Resistance: 4.7 Ohms @ 25°C
  • Current Hold: 393 mA
  • Current Trip: 523 mA
  • Packaging: Bulk
  • Mounting Type: Through-Hole
  • Package/Case: Radial, Disc
  • Height: 0.650" (16.50mm)
  • Temperature Range: -30°C to 85°C
