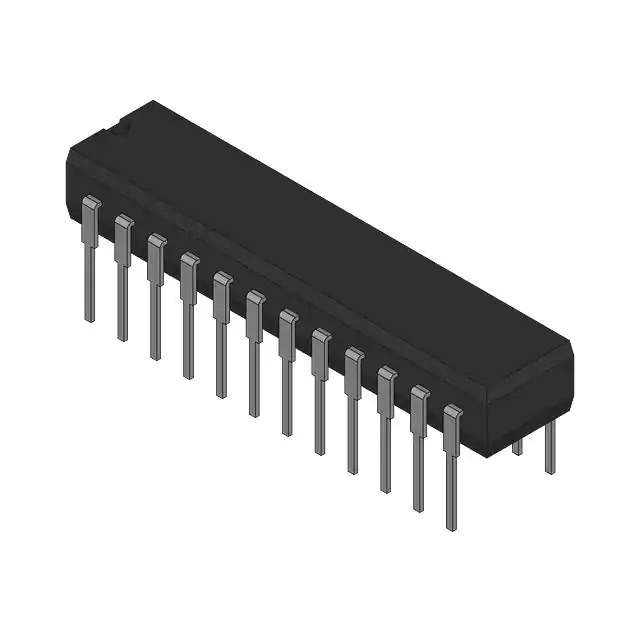

The CD4067BF3A is a highly versatile integrated circuit designed and manufactured by Texas Instruments, one of the leading semiconductor companies. This chip is a single 16-channel analog multiplexer/demultiplexer, which is part of the CD4000 series of CMOS logic integrated circuits. It is well-suited for a wide range of applications, including data acquisition systems, signal routing, and communication systems.

Key Features

• Multiple Channel Configuration: The device offers 16 channels that can be configured as either a multiplexer or a demultiplexer, providing flexibility in application design.
• Binary Addressing: Channel selection is controlled by 4 binary control inputs (A, B, C, and D), which allows for easy interface with microprocessors or other digital systems.
• Low ON Resistance: The CD4067BF3A features a low ON resistance, typically around 125 ohms, which minimizes signal attenuation.
• Wide Operating Voltage: It operates over a wide voltage range from 3V to 18V, accommodating various logic levels and power supplies.
• Bidirectional Signal Handling: The multiplexer/demultiplexer can handle both analog and digital signals in either direction, offering great versatility.
• High Off-Channel Isolation: The device provides excellent signal isolation between channels when in the off state, which is crucial for reducing crosstalk.
• Low Crosstalk: The CD4067BF3A has been designed to minimize crosstalk between channels, ensuring signal integrity.

Applications

The CD4067BF3A can be utilized in a variety of applications due to its versatility. Some common use cases include:

• Analog and digital multiplexing/demultiplexing
• Signal gating
• Data acquisition systems
• Communication systems
• Audio/video switching
• Functional expansion of microcontrollers with limited GPIOs

Overall, the CD4067BF3A from Texas Instruments is a reliable and functional choice for designers looking to implement multiplexing or demultiplexing in their electronic systems. Its robust feature set and operational flexibility make it a go-to component for a multitude of applications.
